2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

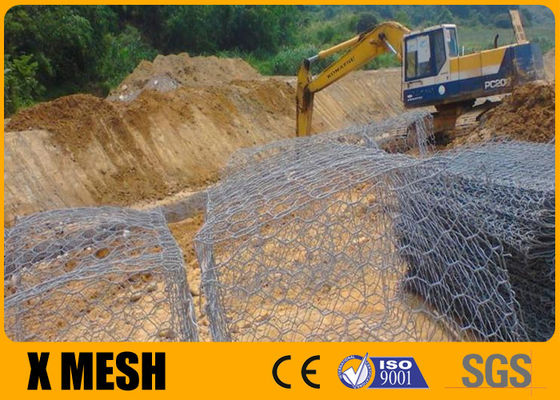

2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975

2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975
2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975 2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975

Large Image :  2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-003
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: USD2.00-USD5.50/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000m2/week

2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975

Description
Features: Simple Construction,good Permeability,etc. Product Name: Gabion Basket
Series: ASTM A975 Standard Wire Diameter: 2.2/2.7/3.2mm
Mesh Opening: 80mm*100mm Gabion Size: 1000mm*1000mm*2000mm
Surface Treatment: Hot Dipped Galvanized Color: Silver
Type: Hexagonal Application: For Erosion Control Projects
High Light:

3.2mm hexagonal gabion cage

,

hexagonal gabion cage ASTM A975

,

hexagonal stone filled wire cages

Hexagonal Gabion Basket with ASTM A975 Standard for River Bank Project



Product Introduction:



Gabion basket is a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

Revet mattress, also called , is also a double-twisted wire mesh container with the same weaving method as gabion baskets, only having relatively smaller height and smaller mesh openings than the mesh used for gabions. Revet mattress are generally used for riverbank protection and channel linings.



Standard Specification:



Mesh Opening (MM) Steel Wire Diameter (MM) (PVC Wire)/ Inside diameter/Outer diameter(MM)
60X80 2.0-2.8 2.0/3.0-2.8/3.8
80X100 2.2-3.2 2.2/3.2-3.0/4.0
80X120 2.2-3.2 2.2/3.2-3.0/4.0
100X120 2.4-3.5 2.4/3.4-3.2/4.2
100X150 2.4-3.5 2.4/3.4-3.2/4.2
120X150 2.7-4.0 2.7/3.7-3.5/4.5



We can produce the gabion baskets and revet mattress on a basis of various materials as follows.



Heavily zinc-coated steel wire conforming to ASTM A 641, Class 3 coating, soft temper;

Zn-5Al-MM-Coated steel wire conforming to ASTM A 856/856M, Class 3, soft temper;

The same type of metallic-coated steel wire as above, but with an additional PVC coating extruded onto the metallic-coated steel wire;

l Aluminum-coated steel wire conforming to ASTM A 809, soft temper;

The most popular wire diameter for gabion baskets is 2.7mm, 2.2mm for revet mattress.



Weaving:



a nonraveling mesh made by twisting continuous pairs of wires through three one-half turns(commonly called double-twisted) to form hexagonal-shaped openings which are then interconnected to adjacent wires to for hexagonal openings. The most popular mesh opening for gabion baskets is 80x100mm size, 60x80mm for revet mattress. During the process, a terminal wire will be used to edge the wire mesh perpendicular to the double twist by mechanically wrapping the mesh wires around it at least 2.5 times or by inserting it throughout the twists and folding one mesh length. We always use 3.4mm wire for gabion baskets, 2.7mm wire revet mattress.



2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975 0


2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975 1



Application:



retaining walls

sea wall

channel linings

revetments

and weirs for erosion control projects



2.2mm 2.7mm 3.2mm Hexagonal Gabion Cage Stone Filled ASTM A975 2
