4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244

4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244
4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244 4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244

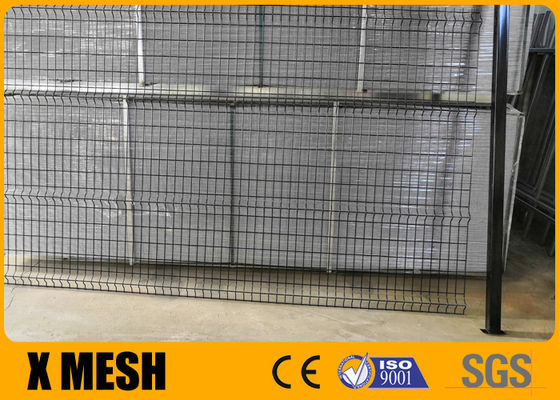

Large Image :  4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-080
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: USD25.00-58.35/Set
Packaging Details: Plastic Film+Metal/Wooden pallet
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244

Description
Height: 2.4m Type: 4 V Beams
Standard: BS 10244-2:2001 Wire Diameter: 5mm
Life: 25 Years Mesh Opening: 50*200mm
Feature: Quick And Simple Installation Color: Black
Width: 3m
High Light:

4 V Beams Perimeter Fencing Systems

,

Perimeter Fencing Systems BS 10244

,

4 V Beams anti fence climbing

2230mm high 4 V Beams BS 10244-2:2001 Standard Perimeter Fencing Systems





Perimeter Fencing Systems Description:



Perimeter Fencing Systems is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.



Perimeter Fencing Systems Powder:



  •

    We always use the best-known world famous powder--Akzo Nobel. After powder spraying,
    the fence will be very smooth ,bright ,have great corrosion resistance, outdoor use year can
    reach 15 - 20 years.



Perimeter Fencing Systems Advantages:



1.The fence has comparatively high overall strength and very apparent decorative effect;

2.High grade plastic dipping with 20 yearsguarantee rust resistance;

3.To install and disassemble easily.Can be reused. Can be adjusted according to the fencing needs;

4.Environmentally friendly products. Can be ultimately recyclable.

--Triangle Fence Post Specifications









Perimeter Fencing Systems Specification:







Mesh Panel

Wire Thickness

Panel Width

Number of Folds

Height

Spacing between horizontal wire: 100mm, 150mm, 200mm

3.0mm
or
3.5mm
or
4.0mm
or
4.50mm
or
5.00mm

2.0m or 2.50m
or 2.9m

2

830mm

2

1030mm

2

1230mm

The spacing between vertical wire:
50mm, 55mm

2

1430mm

3

1630mm

3

1830mm

Reforced folds: 100mm, 200mm

4

2030mm

4

2230mm

4

2430mm



Panel Height

Panel Length

Wire dia

Mesh size

Folds No.

H=1.03m

L=2.5m

4.0mm

50*200mm

2

H=1.23m

L=2.5m

4.0mm

50*200mm

2

H=1.53m

L=2.5m

4.0mm

50*200mm

3

H=1.73m

L=2.5m

4.0mm

50*200mm

3

H=2.03m

L=2.5m

4.0mm

50*200mm

4

Color:

RAL6005 Green,RAL7016 Gray, RAL9005 Black, RAL9010 White



Specification of Square post

Size

40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm

Thickness

1.2mm, 1. 5mm, 2.0mm.

Height

1800mm,2100mm,2300mm,2500mm or as your request

Surface Treatmenq

Hot -dipped galvanized, PVC, hot galva nized+PVC

clips

Plastic clip, metal clip







Perimeter Fencing Systems Process:







1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated





Perimeter Fencing Systems Series:







* Material: Low carbon steel wire & Hot dipped galvanized wire

* Processing mode: welded

* Surface treatment:

I. Black wire welded mesh +electro galvanized+ polyester powder & PVC coated;

II. Galvanized welded mesh + polyester powder & PVC coated;

III. Hot dipped galvanized welded mesh + polyester powder & PVC coated.



We can produce and provide various mesh fences. Our mesh fence products enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Forms of corrosion resistance include electric galvanizing, hot-dip galvanizing, PVC spraying and PVC coating.



This kind of fence netting is beautiful,suitable for any hypsography, and convenient in installation.





Perimeter Fencing Systems Applications:






Home building fence, Home garden fence, Residential fence,Home animal fence, Home outdoor fence,

Fences In Parks, Zoos and nature reserves





Perimeter Fencing Systems Packaging:







The panels of wire mesh fence: wrapped by wooden pallet with plastic film, to keep the panels clean;

The Clamps of wire mesh fence: in small carton box , to avoid damage;





























4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244 0



4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244 1



4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244 2



4 V Beams Perimeter Fencing Systems Anti Fence Climbing BS 10244 3
