Product Details:
|
Product Name: | Hesco Barrier | Series: | 95% Zinc + 5% Aluminium(275g/m2) |
---|---|---|---|
Wire Diameter: | 5.0mm | Mesh Opening: | 75mm X 75mm |
Height: | 610mm | Geotextile: | 300g/m2 |
Color: | Green | Characteristic: | Firm & Stable |
Application: | For Sea Bank | Packing: | Plastic Film & Pallet |
High Light: | 5mm hesco flood barriers,green textiles hesco flood barriers,4mm hesco bastion wall |

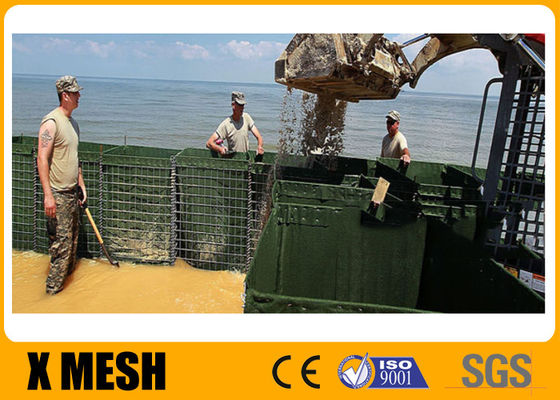

Defensive barrier is also named sand cage, sand bag, welded gabion box, bastion barrier, etc. It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easily installed using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence barrier wall or bunker, it is widely used for fortification and flood control.
Product name |
Hesco Barrier |
Series |
95% Zinc + 5% Aluminium(275g/m2) |
Wire Diameter |
5.0mm |
Mesh Opening |
75mm x 75mm |
Height |
610mm |
Geotextile |
300g/m2 |
Color |
Green |
Characteristic |
Firm & Stable |
Application |
For Sea Bank |
Packing |
Plastic film & Pallet |
Mesh Part |
Geotextile Part |
|||||||
Height |
Width |
Length |
Wire Thickness |
Mesh Opening |
Wire Tensile |
Wire Type |
Weight |
Color |
1370 |
1060 |
10000 |
3.0
|
76.2*76.2
|
540-770Mpa |
Zinc Coated WireZinc/Aluminium Coated Wire |
200G/M2
|
Beige Ral-1001
|
610 |
610 |
1210 |
||||||
1000 |
1000 |
10000 |
||||||
1000 |
1500 |
10000 |
||||||
610 |
610 |
3050 |
||||||
2210 |
2130 |
27740 |
||||||
1370 |
1060 |
10000 |
||||||
1370 |
1220 |
10000 |
||||||
1000 |
760 |
9140 |
||||||
2120 |
1520 |
30500 |
Unit Type |
Height |
Width |
Length |
Internal Cells |
MIL 1 |
1.37m/4'6" |
1.06m/3'6" |
10m/32' |
9cells(4+5) |
MIL 2 |
0.61m/2' |
0.61m/2' |
1.22m/4' |
2cells |
MIL 3 |
1.0m/3'3" |
1.0m/3'3" |
10m/32' |
10cells(5x2) |
MIL 4 |
1.0m/3'3" |
1.5m/5' |
10m/32' |
10cells(5x2) |
MIL 5 |
0.61m/2' |
0.61m/2' |
3.05m/10' |
5cells(5x1) |
MIL 6 |
1.68m/5'6" |
0.61m/2' |
3.05m/10' |
5cells(5x1) |
MIL 7 |
2.21m/7'3" |
2.13m/7' |
27.74m/90' |
13cells(4+4+5) |
MIL 8 |
1.37m/4'6" |
1.22m/4' |
10m/32' |
9cells(4+5) |
MIL 9 |
1.0m/3'3" |
0.76m/2'6" |
9.14m/30' |
12cells(6x2) |
MIL 10 |
2.12m/7' |
1.52m/5' |
30.5m/95' |
20cells(5x4) |
MIL1.9 |
2.74m/9' |
1.06m/3'6" |
3.3m/11'3" |
3cells(3x1) |
EPW 1 |
2.1m/7' |
1.06m/3'6" |
33m/108' |
30cells(5x6) |
Our defensive barrier comes as a flat-packed unit and can be assembled faster with minimal manpower, handling equipment, and fill material. That can largely save you time and manpower compared with the previous sandbag barrier.
Perimeter security and defensing walls, Equipment revetments, explosive and contraband search areas, Ammunition compounds, Personnel and material bunkers, Observation points, Defensive firing positions, Highway checkpoints, Border crossing checkpoints, Protection existing structures, High way traffic management, Flood control, Water courses, Emergency flood deployment & Erosion control.
