QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders

QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders
QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders

Large Image :  QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Gang Nail-006
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: USD0.15-0.5/PC
Packaging Details: Wrapped with Carton, Pallet or Wooden Case
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500TONS/MONTH
Contact Now

QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders

Description
Product Name: Nail Plate Coating/Material: Zinc Galvanized, G90
Description: 1 1/2″ X 3″ Gauge: 14
Case Weight: 42 Case Quantity: 500
Standard: ASTM A 924 Plate Length: 2" - 24"
Width: 1” To 12” Packing: Carton, Pallet Or Wooden Case
Highlight:

ASTM A 653 Nail Plate

,

QJ1218B Nail Plate

,

20 Gauge Nail Plate

QJ1218B ASTM A 653 Standard G90 Timber Connector Nails with 20 Gauge for builders

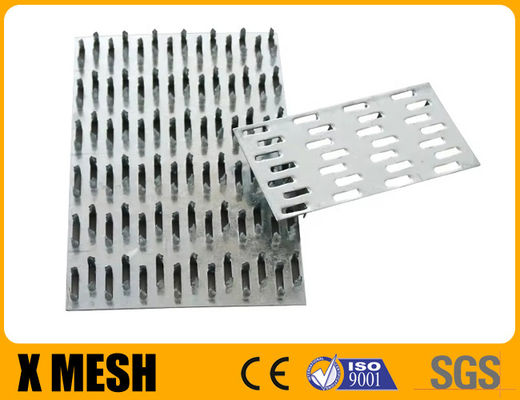

Nail Plate Introduction:



The most popular connector plate.

Offers the highest performance levels in side-by-side comparison tests with all other competitive products.

Can be rolled or hydraulically pressed.

Uses Grade 90 steel – a higher grade than previous plates – so it provides superior plate values.

Qije more than one and a half years researching, developing and testing the Wave Plate before its introduction.



1. material:SGH340+Z275

2. size:any size is ok

3. package:paper carton and wood pallet

4. all connectors used for wood building we can do





Product Name

Nail Plate

Coating/Material

Zinc Galvanized, G60

Description

1 1/2″ X 3″

Gauge

14

Case weight

42

Case quantity

500

Standard

ASTM A 653

Plate Length

2" - 24"

Width

1” to 12”

Packing

Carton, Pallet or Wooden Case



Nail Plate Specifications:



Catalog number

Description

Gauge

Case quantity

Case weight

SP314500

1 1/2″ X 3″

14

500

42

SP514100

1 1/2″ X 5″

14

100

13

SP514100-3

3″ X 5″

14

100

60

SP316100

1 1/2″ X 3″

16

100

7

SP316500

1 1/2″ X 3″

16

500

35

SP416100

1 1/2″ X 4″

16

100

10

SP516100

1 1/2″ X 5″

16

100

11

SP516250

1 1/2″ X 5″

16

250

27

SP616100

1 1/2″ X 6″

16

100

14

SP516100-2

2″ X 5″

16

100

15

SP516100-3

3″ X 5″

16

100

4

SP616100-3

3″ X 6″

16

100

28

SP318100

1 1/2″ X 3″

18

100

4

SP518100

1 1/2″ X 5″

18

100

8

SP618100

1 1/2″ X 6″

18

100

10

SP518100-2

2″ X 5″

18

100

9

SP518100-3

3″ X 5″

18

100

13

SP320100

1 1/2″ X 3″

20

100

4

SP520100

1 1/2″ X 5″

20

100

7

SP620100

1 1/2″ X 6″

20

100

8

SP520100-2

2″ X 5″

20

100

8

SP520100-3

3″ X 5″

20

100

13





Type

Size(inch)

Size(mm)

Thickness(mm)

Tooth Height(mm)

Single/Double nail

2"*3"

50*75

1.0,1.2,1.5

7.5--15.0

Single/Double nail

2"*4"

50*100

1.0,1.2,1.5

7.5--15.0

Single/Double nail

3"*6"

75*150

1.0,1.2,1.5

7.5--15.0

Single/Double nail

4"*4"

100*100

1.0,1.2,1.5

7.5--15.0

Single/Double nail

4"*5"

100*125

1.0,1.2,1.5

7.5--15.0

Single/Double nail

4"*6"

100*150

1.0,1.2,1.5

7.5--15.0

Single/Double nail

6"*6"

150*150

1.0,1.2,1.5

7.5--15.0

Single/Double nail

8"*8"

200*200

1.0,1.2,1.5

7.5--15.0

Single/Double nail

8"*10"

200*250

1.0,1.2,1.5

7.5--15.0



Nail Plate Feature:

1. Quick Delivery
2. OEM can be acceptable.
3. Good quality with competitive price
4. Some Quantity is OK.

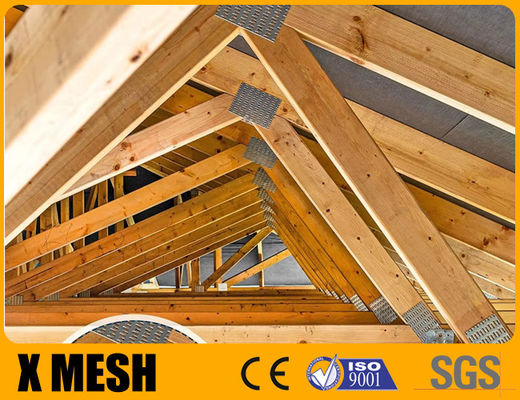

Nail Plate Application:

structural engineers
architects
contractors
truss manufacturers
production homebuilders
lumber
building material dealers
national retailers
DIY homeowners

FAQ

1. who are we?
We are based in Hebei, China, start from 2021,sell to Domestic Market(40.00%),Eastern Asia(20.00%),Northern Europe(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Africa(5.00%),South America(3.00%),North America(3.00%),Central America(3.00%),Mid East(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Meatl Bracket,Cable Management Tray,Pergola Brackets,Metal Web Joist,Truss Nail Plate

4. why should you buy from us not from other suppliers?
We specialize in a complete spectrum of custom metal fabrication services to the global customers, which include metal fabrication, precision stamping, deep drawing, welding, CNC machining, laser cutting and surface finishing.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese



QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders 0

QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders 1

QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders 2

QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders 3

QJ1218B ASTM A 653 Standard G90 Nail Plate with 20 Gauge for builders 4
