200*45mm Metal Mesh Fencing PPC Finish V Mesh Horse Fence Galvanized

200*45mm Metal Mesh Fencing PPC Finish V Mesh Horse Fence Galvanized
200*45mm Metal Mesh Fencing PPC Finish V Mesh Horse Fence Galvanized 200*45mm Metal Mesh Fencing PPC Finish V Mesh Horse Fence Galvanized

Large Image :  200*45mm Metal Mesh Fencing PPC Finish V Mesh Horse Fence Galvanized

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-040
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: USD25.00-58.35/Set
Packaging Details: Plastic Film+Metal/Wooden pallet
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

200*45mm Metal Mesh Fencing PPC Finish V Mesh Horse Fence Galvanized

Description
Mesh: 200 X 45mm Color: Green
RAL: 9005 Type: Fencing
Fence Post: 80x60mm Wire Diameter: 5mm
Packing: Pallet Packing Application: For Industrial
High Light:

200*45mm Metal Mesh Fencing

,

PPC Finish v mesh horse fence

,

v mesh horse fence Galvanized

200 x 45mm mesh RAL 9005 black V shaped beams Metal Mesh Fencing

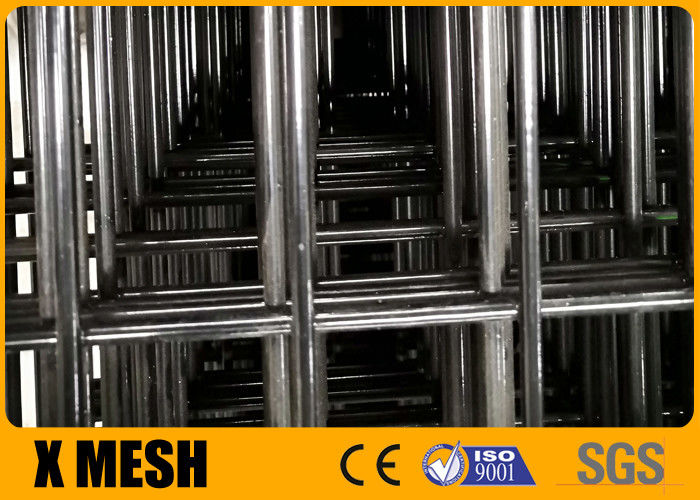

Metal Mesh Fencing Description:



‘V’ Mesh Fencing.

When it comes to security fencing ‘V’ mesh is one of the most comprehensive, cost effective solutions. It provides excellent security, looks and value for money without compromising on any of the features you would need from a top of the line security fence.

V Mesh Fencing is available in various standard RAL colours to enhance the overall appearance of your security fencing system.

A powder coated finish increases resilience against weathering and vandalism.



The Spec



Apperture: 100mm x 50mm

Finish: Galvanised & Powder Coated



Metal Mesh Fencing Specification:



Installed Height

1200mm (Installed, including ground clearance)

Panel Dimensions

1190mm [H] x 3000mm [W]

Material

Pre-Galvanised Steel

PPC Finish

Green, Blue, Black, Red, Grey, Brown

Compliant to

BS 10244-2:2001 Class D (Galvanised Wire)

Number of 'V' Beams

3



3D Panel Fence ( Galvanized + Powder Coated )

Panel Height

Panel Length

Wire Dia.

Mesh Size

Folds No.

H=630mm













L=2000/2200/2500mm













4.0mm/5.0mm or as customer request



2

H=830mm

55*100mm

2

H=1030mm

55*200mm

2

H=1230mm



2

H=1530mm



3

H=1730mm



3

H=1930mm



3

H=2030mm



4

H=2230mm



4

H=2430mm



4





Metal Mesh Fencing process:


1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated

Metal Mesh Fencing Features:



Many fencing manufacturers have different brand names for V mesh fencing, at Qijie Company, EuroGuard Regular is our standard V mesh fencing which features 200 x 45mm mesh with 5mm wires and 3-4 folds according to height. EuroGuard Extra is also a V mesh fence, with a smaller mesh pattern of 200 x 30mm that is unique to Qijie, and results in narrower apertures. Both panels have unique vandal-proof panel to post fixings, and panels that overlap onto posts to prevent large gaps between panels and posts.


This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.



Metal Mesh Fencing Application:



  • Car Parks

  • Sports & Recreation

  • Perimeter – Medium Security

  • Schools

  • Retail

  • Industrial Units
