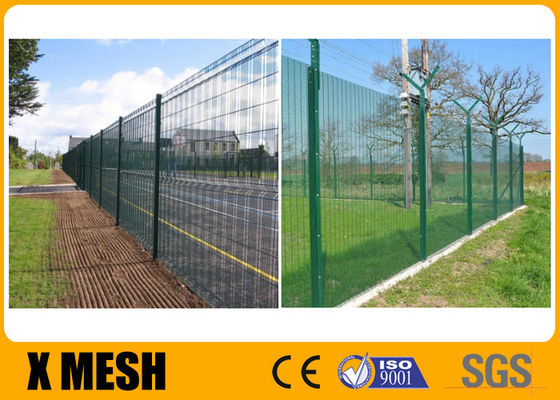

Highway Welded Security Metal Mesh Fencing Long Using Life 3m Height

Large Image : Highway Welded Security Metal Mesh Fencing Long Using Life 3m Height

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Airport Fence-009

Payment & Shipping Terms:

Minimum Order Quantity:	100sets
Price:	USD15.00-58.35/M
Packaging Details:	Plastic Film+Metal/Wooden pallet
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	5000sets/week

Contact Now

Highway Welded Security Metal Mesh Fencing Long Using Life 3m Height

Description

Product Name:	Security Fencing	Material:	Pre Galvanized Steel
Wire Diameter:	5mm	Mesh Size:	50mm X 100mm
Fence Height:	3m	Fence Width:	2.5m
Post Size:	80mm X 80mm X 2mm X 3.5m	Feature:	High Security & Long Using Life
Application:	For Airport	Series:	Galvanized & Powder Coated
High Light:	security mesh fencing 3m Height , Metal Mesh Fencing 3m Height , Highway Metal Mesh Fencing

Welded Security Fence System Metal Mesh Fencing with long using life for Airport and Highway

Metal Mesh Fencing Description:

Our fences are made from high-quality steel tubes and heavy gauge steel wire. Its dominant style is simple, functional, and sturdy. It's available for commercial, residential and more application.

Product Name	Metal Mesh Fencing
Material	Pre Galvanized Steel
Wire Diameter	5mm
Mesh Size	50mm x 100mm
Fence Height	3m
Fence Width	2.5m
Post Size	80mm x 80mm x 2mm x 3.5m
Feature	High Security & Long Using Life
Application	For Airport
Series	Galvanized & Powder Coated

Metal Mesh Fencing Specification:

1)Panel

Panels			Post
Fence	Panel Size	Post Size	Post Height	Total Number of Fixings
Height(m)	Height/Width(mm)	Length/Width/Thickness(mm)	mm	Inters- 1 clamp	Corners-2 clamp
2.0	2007 × 2515	60×60×2.5mm	2700	7	14
2.4	2400 × 2515	60×60×2.5mm	3100	9	18
3.0	2997 × 2515	80×80×2.5mm	3800	11	22
3.3	3302 × 2515	80×80×2.5mm	4200	12	24
3.6	3607 × 2515	100×60×3mm	4500	13	26
3.6	3607 × 2515	100×100×3mm	4500	13	26
4.2	4204 × 2515	100×100×4mm	5200	15	30
4.5	4496 × 2515	100×100×5mm	5500	16	32
5.2	5207 × 2515	120×120×5mm	6200	18	36

2)Y post

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x60mm	2.0mm 2.5mm	Gal.+PVC coated	2700mm I+530mm V	Available On request	Plastic or Metal
			3100mm I+630mm V
			3600mm I+730mm V

Metal Mesh Fencing Feature:

Anti-climb: More small openings, no toe or finger holds.

Anti-cut: robust wire and welded joints make cutting very difficult.

High-strength: The superior welding technique and process control create a stronger fusion between the wires.

Finish treatment: there are two treatment types: hot dipped galvanized and plastic coated.

The colors of plastic coated are mainly green and black. Each color is available according to your require.

Metal Mesh Fencing Packing:

We have iron and wooden pallets, which are well packed to avoid the damage caused by bumps during transportation.If you have demands about the packing,we can do as your required.

Metal Mesh Fencing Application:

1. Bridge anti-climb guarding & guard safety screening
2. Psychiatric hospital security fencing
3. Prison security fencing
4. Factory machine guards
5. Walkway security fencing
6. Airport security fencing
7. Shipping Port Security fencing
8. Electrical sub-station fencing
9. Gas pipelines security fence
10. High security living area and private field fence

FAQ:

Q:Are you factory or Middleman?
A:Yes, we have been in providing the professional products in fence field for 16 years.

Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.

Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.

Q: How about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.

Q:How many days you need to produce one container fence?
A:Production Time: 12-15 days for one co
