2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size

2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size
2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size 2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size

Large Image :  2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Welded Razor Mesh-09
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: USD25.00-75.00/Set
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size

Description
Name: Security Metal Fencing Material: Galvanized Steel/Stainless Steel
Type: BTO-22 Hole Type: Diamond
Hole Size: 51mmx152mm Height: 2.44m
Length: 3m Application: For Airport
Feature: Easy Installation Packing: Pallet/Roll Packing
High Light:

2440mm Height Security Metal Fencing

,

Security Metal Fencing For Airport

,

51mmx152mm Security Metal Fencing

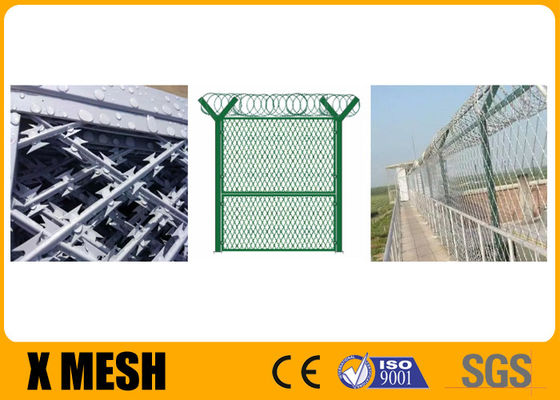

 Welded Razor Wire Mesh 51mmx152mm Diamond Hole Size 2440mm Height Security Metal Fencing



Security Metal Fencing Description:

Galvanized razor wire has zinc coating in resist acid rains and bad weather. Compared with naked steel razor wire, galvanized wire is very durable and anti-rust.Galvanized razor wire often combines with chain fences, welded wire fence, walls and gates to provide high security. Welded Razor Mesh Fence is fabricated by welding straight razor wire in square or rhombus profiles with surface treatment with PVC coated.

BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.

Name

Security Metal Fencing

Material

Galvanized Steel/Stainless Steel

Type

BTO-22

Hole Type

Diamond

Hole Size

51mmx152mm

Height

2.44m

Length

3m

Application

For Airport

Feature

Easy installation

Packing

Pallet/Roll Packing



Security Metal Fencing Specification:

Square Aperture Size

100mmx100mm,150mmx150mm,200mmx200mm

Diamond Aperture Size

76mmx152mm, 51mmx152mm, 25mmx51mm

Panel Height

1830mm,2440mm,3050mm,3660mm

Panel Length

customization



Peference

number

Thickness

(mm)

Wire dia

(mm)

Barb length

(mm)

Bard width

(mm)

Bard spacing

(mm)

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-15

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-30

0.5±0.05

2.5±0.1

30

18

45±1

CBT-60

0.6±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65

0.6±0.05

2.5±0.1

65±2

21±1

100±2

Barbed Tape Wire Specification

Loop Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450mm

33

7-8M

CBT-60.65

Single coil

500mm

56

12-13M

CBT-60.65

Single coil

700mm

56

13-14M

CBT-60.65

Single coil

960mm

56

14-15M

CBT-60.65

Single coil

450mm

56

8-9m(3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

500mm

56

9-10M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

10-11M(3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

8-10M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

700mm

56

10-12M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

800mm

56

11-13M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

900mm

56

12-14M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

960mm

56

13-15M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

980mm

56

14-16M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

Security Metal Fencing Feature:

  1. It is almost impossible to climb.

  2. High-strength steel core make it hard to cut off.

  3. Powerful security fence barriers with neat appearance.

  4. Easy installation.



Security Metal Fencing Application:

Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencing. It also can be suitable for industry,agriculture,animal husbandry,dwelling house,plantation or fencing.

Razor wire is widely used to manufacture the wire fence for a fencing system or security system

and is applicable in military field,airports fencing,prisons protection,detension houses,government buildings and other national

security facilities.
