358 Security Fencing Powder Coated

Commercial AS2423-2002 Standard 2400mm width 76.2 mm × 12.7 mm Anti Climb Mesh Fence

Anti Climb Mesh Fence Description:

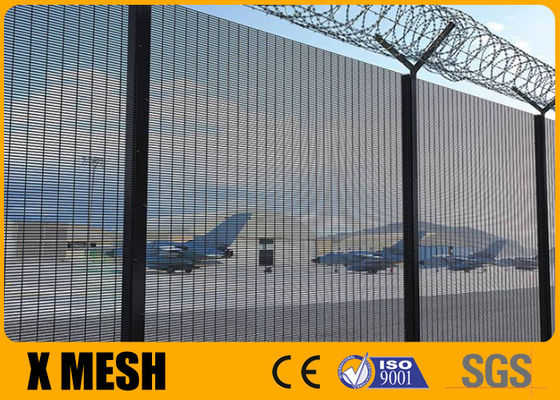

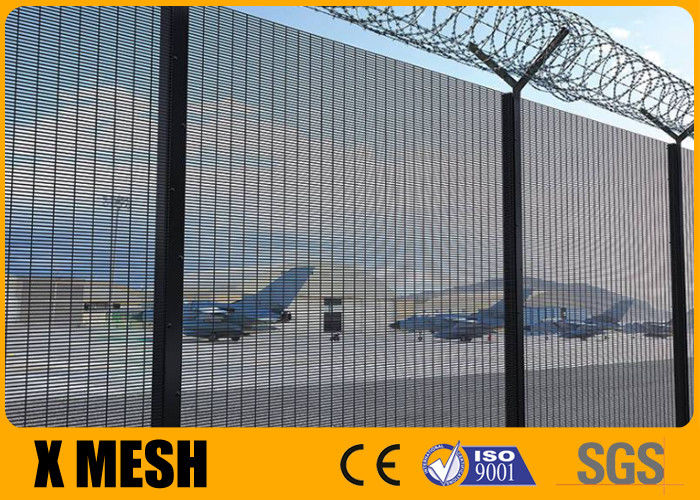

358 Welded Anti Climbing Fence – Prison Mesh Fencing

358 anti climb fence, known as "prison mesh", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.

The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.

Anti Climb Mesh Fence Introduction:

• 358 mesh panel size

  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").

  • Wire diameter: 4 mm horizontal wire and vertical Wire.

  • Weld strength: range 540–690 N/m2.

  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

  • Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.

  • Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.

• Fence posts

  • Material: high grade steel for maximum strength and rigidity.

  • Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm.

  • Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.

  • Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

  • Colors: same as panel.

  • Post cap: metal caps or plastic cap.

  • Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

Anti Climb Mesh Fence Specification:

Anti Climb Mesh Fence Feature:

• Anti-climb: The opening holes are so small that even fingers cannot penetrate in.

• Anti-cut: Bolt cutter and wire cutter cannot make itself through the narrow holes, therefore the fence won't be destroyed.

• Strong welded point: The welded joints are fixed firmly, won't split by natural human and nature force.

• Smooth surface: The panel finish surface is well-proportioned for a decorative effect.

• Durable: The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life.

Anti Climb Mesh Fence Packaging:

358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

Anti Climb Mesh Fence Application:

As the leading outdoor perimeter fencing expert in China, ANTI CLIMB FENCE is widely used by reputable Real Estate Developers, Industrial Factories, Engineering Firms, Farms owners, Government Sectors :JKR, DBKL,TNB, MBSA, MBPJ, KNM, TM, SYABAS,IWK etc.

• Army Camp

• Gated Security

• Prison

• Industrial Factory

• Play Ground

• Stadium

• Housing Estate

• Detention Centre

• Carpark

• Public Hall

• Train Station

• Harbour

• Walkway

• Highway

• Sport Centre

• Airport

• School

• Lrt Station

• Dam Boundary

• Reserved Forest​

•
