50 Foot Green Vinyl Chain Link Mesh Fencing ASTM F668

Large Image : 50 Foot Green Vinyl Chain Link Mesh Fencing ASTM F668

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-026

Payment & Shipping Terms:

Minimum Order Quantity:	200m2
Price:	USD1.25-5.85/m2
Packaging Details:	Wrapped with plastic film and pallet packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	50000m2/week

Contact Now

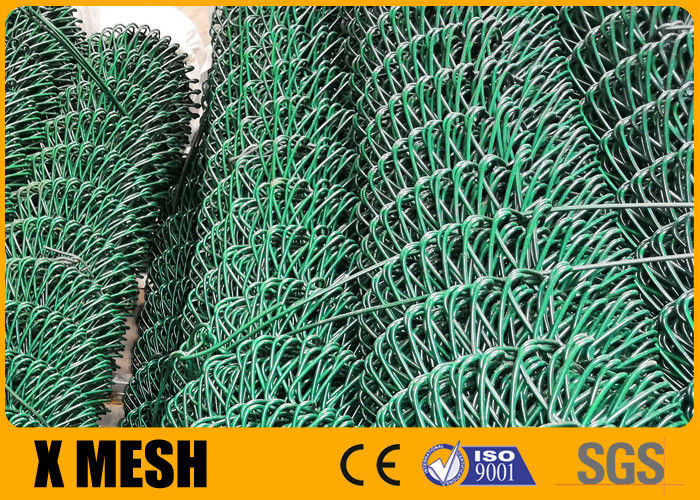

50 Foot Green Vinyl Chain Link Mesh Fencing ASTM F668

Description

Standard:	ASTM F668	Type:	Fencing
Top Rail:	1-3/8"	Color:	Green
Application:	For Industrial	Line Post:	2"
Terminal Post:	2-1/2"	Length:	50'
Height:	6'	Wire Diameter:	9#
High Light:	green vinyl chain link fence , green vinyl chain link fence ASTM F668 , 50 foot chain link mesh fencing

50 foot Green Vinyl ASTM F668 Standard chain link mesh fencing

chain link mesh fencing Introduction:

Chain link fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications.

Although galvanized silver chain link fences are very popular, many customers have chosen color chain link fence systems to accentuate siding, roofing, and trim colors on houses and businesses. There are two types of vinyl coating(PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option.

Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.

chain link mesh fencing Specification:

Extruded and adhered

zinc coating

core wire size

PVC coated finished
wire size

PVC coated wire
available variance

Core wire zinc,
coating weight
min.

PVC coating
thickness

Breaking strength
minimum

Tensile strength,
min

ga.

inch

mm

ga

inch

mm

oz/ft2

g/m2

inch

mm

lbf

N

ksi

Mpa

9

0.148

3.76

6 +/- 0.005

+/-0.13

0.30

92 0.015 to
0.025

0.38 to
0.64

1,290

5,740

75

515

11

0.120

3.05

8 +/- 0.005

+/-0.13

0.30

92

850 3,780

75

515

14

0.080

2.03

11 +/- 0.005

+/-0.13

0.25

76

380 1,690

75

515 Fused and bonded

zinc coating

core wire size

pvc coated finished
wire size

PVC coated wire
available variance

Core wire zinc,
coating weight
min.

PVC coating
thickness

Breaking strength
minimum

Tensile strength,
min

ga

inch

mm

ga

inch

mm

oz/ft2

g/m2

inch

mm

lbf

N

ksi

Mpa

6

0.192

4.88

5 +/- 0.005

+/-0.13

0.40

122 0.006 to
0.010

0.15 to
0.25

2,170

9,650

75

515

9

0.148

3.76

8 +/- 0.005

+/-0.13

0.30

92 1290

5,740

75

515

10

0.135

3.43

9 +/- 0.005

+/-0.13

0.25

92 1290

5,740

90

620

11

0.120

3.05

10 +/- 0.005

+/-0.13

0.30

92

850 3,780

75

515

12

0.105

2.67

11 +/- 0.004

+/-0.10

0.30

76

650 2,890

75

515

14

0.080

2.03

13 +/- 0.004

+/-0.10

0.25

76

380 1,690

75

515 A typical specification list for 9 gauge chain link fence fabric

PVC Coated Chain Link Fence - 9 Gauge
PVC Coated 9 gauge *Colors depicted not exact	Size (Mesh x Gauge x Height)	Ends	Weight Per 50'
	2 x 9 x 36	KxK	53 lbs
	2 x 9 x 42	KxK	63 lbs
	2 x 9 x 48	KxK	70 lbs
	2 x 9 x 60	KxK	88 lbs
	2 x 9 x 72	KxB	105 lbs
	2 x 9 x 84	KxB	123 lbs
	2 x 9 x 96	KxB	140 lbs
	2 x 9 x 120	KxB	173 lbs
	2 x 9 x 144	KxB	208 lbs
	1-3/4 x 9 x 120	KxB	198 lbs
	1-3/4 x 9 x 144	KxB	238 lbs

chain link mesh fencing Application:

Tennis courts

Gardens

Play areas

School boundaries

Parks

Ministry of Defence

Suitable posts and gates

50 Foot Green Vinyl Chain Link Mesh Fencing ASTM F668 1

50 Foot Green Vinyl Chain Link Mesh Fencing ASTM F668 2

50 Foot Green Vinyl Chain Link Mesh Fencing ASTM F668 3
