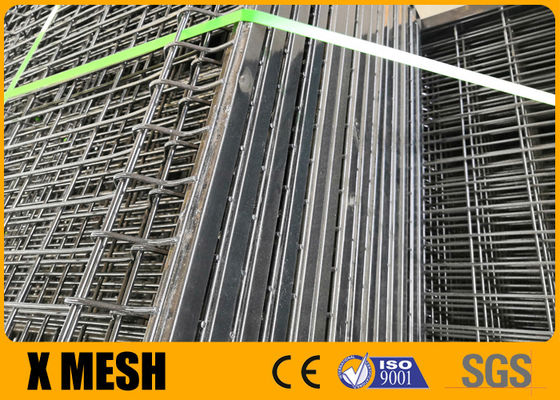

BS 10244 Wire Metal Mesh Fencing V Shaped H 2.4m Powder Coated

BS 10244 Standard V shaped 2.4m High Industrial Metal Mesh Fencing





Metal Mesh Fencing Description:



Metal Mesh Fencing an economical version of the panel system, constructed from a Welded Wire Fence with longitudinal profiles that forms a rigid fence.Due to its simple structure ,easy installation and nice appearance,more and more customers regard this product as the preferred common protective fence.



Metal Mesh Fencing Powder:







We always use the best-known world famous powder--Akzo Nobel. After powder spraying,
the fence will be very smooth ,bright ,have great corrosion resistance, outdoor use year can
reach 15 - 20 years.



Metal Mesh Fencing Specification:



Mesh Panel	Wire Thickness	Panel Width	Number of Folds	Height
Spacing between horizontal wire: 100mm, 150mm, 200mm	3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm	2.0m or 2.50m or 2.9m	2	830mm
			2	1030mm
			2	1230mm
The spacing between vertical wire: 50mm, 55mm			2	1430mm
			3	1630mm
			3	1830mm
Reforced folds: 100mm, 200mm			4	2030mm
			4	2230mm
			4	2430mm



Fence panel	Material	Low carbon steel wire
	Wire diameter	3.0mm-6.0mm
	Opening(mm)	50x100, 50x150,50x200,75x150,75x200
	Height	0.8-3M
	Width	2-3M
	Panel type	with or without curves are both available
Fence post	Square post	40x40mm,50x50mm,60x60mm,40x60mm
	Round post	40-60mm
	Peach post	50x70mm, 70x100mm
	Post thickness	1.2-2.5mm
	Post height	0.8-3.5M
	Post base	with or without the base flangle are both available
	Post fittings	post clips with bolts and nuts ,post rain post
Fence finishing	Hot -dipped galvanized
	PVC powder spraying coated or PVC powder dipped coated
	Galvanized +PVC powder spraying/ dipped coated
Packing	1. with pallet; 2. bulk in container
The customization is also available



Specification of Square post
Size	40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm
Thickness	1.2mm, 1. 5mm, 2.0mm.
Height	1800mm,2100mm,2300mm,2500mm or as your request
Surface Treatmenq	Hot -dipped galvanized, PVC, hot galva nized+PVC
clips	Plastic clip, metal clip



Metal Mesh Fencing Advantage:





1.The fence has comparatively high overall strength and very apparent decorative effect;

2.High grade plastic dipping with 20 yearsguarantee rust resistance;

3.To install and disassemble easily.Can be reused. Can be adjusted according to the fencing needs;

4.Environmentally friendly products. Can be ultimately recyclable.

--Triangle Fence Post Specifications





















Metal Mesh Fencing Application:



1.Material:Low carbon steel wire and other materials

2.Process: Made through weaving, punching and welding.

3.Application:Fencing and protection for road, railway, airport, residence district, seaport, garden, feeding and husbandry

4.Product Features:Corrosion resistant, age resistant, sunshine proof, weather proof.

5.Corrosion Form:Electric galvanized, Hot-dipped galvanized after welded, Powder coated, PVC coated



















​​
