Wire Dia 4mm Welded Mesh Gabion Baskets 4×1×1m Prevent Flood Landslide

Wire Diameter 4mm Gabion Size 4.0 × 1.0 × 1.0m prevent flood and landslide Stone Cage





Stone Cage Introduction:







Stone Cage are made from galvanized wire mesh. Each gabion is constructed of rugged high tensile wire which is coated with a thick corrosion-resistant layer of zinc. The wire is also available with a tough, durable PVC coating. The use of high quality materials results in a longer, more reliable gabion life.

Welded Gabions are supplied from stock in a complete range of sizes. Non-typical sizes to fit your unique site conditions are also available upon request.



precision of Stone Cage



Welded Gabions are top quality because the wire is welded on precision, microprocessor controlled welding machines. The result is the strongest welded wire mesh in the industry.



high performance galvanizng after weldeding



As a result we virtually eliminate destructive holes in the zinc coating that are created during welding. In addition, our galvanizing is the most pure - 99% pure zinc - Which you can be assured will provide your gabions with the utmost in corrosion protection.



PVC coating- an extra measure of protection



The polyvinyl chloride (PVC) coating that is applied to our wire mesh is engineered for superior corrosion protection in tough, demanding applications. The PVC coating is fuse bonded to the galvanized wire providing an environmentally tight seal. The result is a coating that grips to the mesh even under high UV and saltwater exposure. Our PVC baskets are also available in a variety of colors, giving your application the high visibility it needs or allowing it to blend into the surrounding landscape.



Special Stone Cage



For the most extreme conditions and project applications, Welded Wire Gabions can be custom made from Stainless Steel and Copper mesh. These high performance meshes will provide your designs with extreme protection even in the most severe conditions.



Stone Cage installation

Field installation is quick and easy. With diaphrams and stiffeners installed, the gabion may be filled with standard loading equipment. After filling the gabion, a lid is placed on top and secured with spiral binders, lacing wire or "C" rings. Welded Wire Gabions hold their shape better - they don't bulge out when filled. They are easy to handle, which means more work, less labor and higher productivity on the job.



Stone Cage Standard Specification:



Box Size (mm)	Mesh size (mm)	No. of diaphragms (No.)	Capacity/box(m3)
1.0x1.0x0.5	50x50   75x75   50x100   100x100	/	0.5
1.0x1.0x1.0			1.0
1.5x1.0x0.5			0.75
1.5x1.0x1.0			1.5
2.0x1.0x0.5		1	1.0
2.0x1.0x1.0			2.0
3.0x1.0x0.5		2	1.5
3.0x1.0x1.0			3.0
4.0x1.0x0.5		3	2.0
4.0x1.0x1.0			4.0



Stone Cage Feature:



Material:Low carbon steel wire ; Galvanized wire

Treatment:Zinc coated; PVC coated; Galfan coated

Welded gabion box is composed of welded mesh panel and spring steel lacing wire.



Gabion material:

(1) Galvanized steel wire diameter 2.0MM-4.0MM, tensile strength >1380Mpa



(2) Zinc 5% Aluminum wire diameter 1.0MM-3.0MM, tensile strength >1380Mpa



(3) PVC coated galvanized steel wire diameter 2.6MM-4.8MM

Advantages

a:quicker assembly

b:better shape control

c:enco-friendly

d:durable and low maintenance

Gabion Retaining Wall Specifications



Gabion Box Materials

a. zinc-coated wire mesh,standard ASTM_A641

b.galvanized wire mesh

c.hot-dipped galvanized wire mesh

d.PVC coated wire mesh ,standard EN 10245-2

The product's material and size is available upon request.



3) Characterastics

* Economic.
* Simple installation

* No collapse even under big scope of deforming.
* Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.
* Less transport freight. It can be folded together for transport and further installation.

* Water ,soil and bridge protection

*High strength and corrision resistance

gabion mesh making procedure



Stone Cage Application:

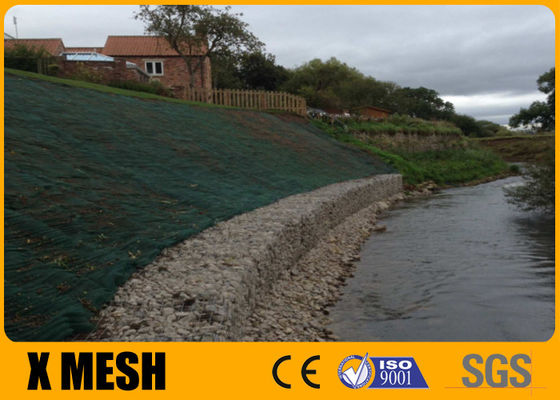

• prevent soil loss,prevent flood and landslide

• yard decoration stone wall fence

• military defense wall for defence works

• basement for road

• plant landscope

• decoration crafts for home yard etc

• rock filled retaining wall fence

•











Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Strengthening structure of soil.

Protection engineering of seaside area.
