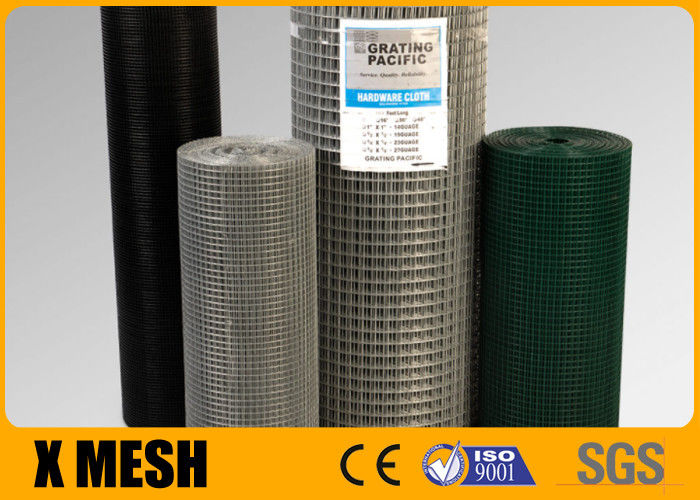

2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga

2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga
2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga 2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga

Large Image :  2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-0233
Payment & Shipping Terms:
Minimum Order Quantity: 1000m2
Price: USD1.85-2.35/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 85000m2/week

2"X2" Galvanised 304 Stainless Steel Wire Mesh Roll ASTM A580 15Ga

Description
Feature: Easily Cut To Fit Standard: ASTM A580
Mesh Size: 2" X 2" Material: SS304
Packing: Wooden Case Length: 25m
Width: 1.5m Wire Gauge: 15Ga
Application: For Window Guards Color: Silver
High Light:

2"x2" 304 stainless steel wire mesh

,

304 stainless steel wire mesh 15Ga

,

galvanised wire mesh roll ASTM A580

window guards Easily cut to fit 2" x 2" Mesh Size SUS 304 Stainless Wire Mesh





SUS 304 Stainless Wire Mesh Introduction:



The finished welded wire mesh offer flat and uniform surface, firm structure, good integrity. The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.



1. Welded Wire Mesh:
It through the process of automation and sophisticated welding technique. The end product is level and flat, sturdy structure, and
even strength throughout, the netting shows no wear and tear when cutting off a part or under a stress.

Smooth and uniform mesh edge; Welded cross wires for added strength.

Uniform bright galvanizing; Extreme corrosion resistant.

Easy to handle and carry; Easy to install



Wire diameter 1-6mm

Mesh size: 1/2x1, 1x1, 1x2, 2x2 etc

Fence height: 0.8m-2m

Length: 1m-5m

Custom-made: Yes



201stainless steel welded wire mesh

304 stainless steel welded wire mesh

316 stainless steel welded wire mesh



SUS 304 Stainless Wire Mesh Specification:



Mesh

BWG

Mesh

Gauge

1'' x 2''

14

25.4mm x 50.8mm

2.10mm

1'' x 2''

15

25.4mm x 50.8mm

1.82mm

1'' x 2''

16

25.4mm x 50.8mm

1.65mm

1'' x 2''

17

25.4mm x 50.8mm

1.47mm

1'' x 1''

14

25.4mm x 25.4mm

2.10mm

1'' x 1''

15

25.4mm x 25.4mm

1.82mm

1'' x 1''

16

25.4mm x 25.4mm

1.65mm

1'' x 1''

17

25.4mm x 25.4mm

1.47mm

1'' x 1''

18

25.4mm x 25.4mm

1.24mm

1'' x 1''

19

25.4mm x 25.4mm

1.06mm

3/4'' x 3/4''

16

19.05mm x 19.05mm

1.65mm

3/4'' x 3/4''

17

19.05mm x 19.05mm

1.47mm

3/4'' x 3/4''

18

19.05mm x 19.05mm

1.24mm

3/4'' x 3/4''

19

19.05mm x 19.05mm

1.06mm

3/4'' x 3/4''

20

19.05mm x 19.05mm

0.88mm

1/2'' x 1''

17

12.7mm x 25.4mm

1.47mm

1/2'' x 1''

18

12.7mm x 25.4mm

1.24mm

1/2'' x 1''

19

12.7mm x 25.4mm

1.06mm

1/2'' x 1/2''

18

12.7mm x 12.7mm

1.24mm

1/2'' x 1/2''

19

12.7mm x 12.7mm

1.06mm

1/2'' x 1/2''

20

12.7mm x 12.7mm

0.88mm

1/2'' x 1/2''

21

12.7mm x 12.7mm

0.81mm

1/2'' x 1/2''

22

12.7mm x 12.7mm

0.71mm

1/4'' x 1/4''

23

6.35mm x 6.35mm

0.63mm

3/8'' x 3/8''

21

9.525mm x 9.525mm

0.81mm



Specification List of Welded Wire Mesh

Opening

Wire Diameter

In inch

In metric unit(mm)



1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1" x 1"

25.4mmX25.4mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

2" x 3"

50mmx70mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mmx75mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mmx100mm

2.11mm,2.5mm

4" x 4"

100mmx100mm

2.0mm,2.5mm

Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.



SUS 304 Stainless Wire Mesh Feature:



1.made of high quality steel wire

2.various configurations and sizes

3.used for the loose strata to avoid falling rocks

4.easy installation

5.available in black or hot dip galvanized

• Easily workable
• Solid construction
• Extremely versatile
• Easy to install
• Lightweight
• Low resistance to wind loads
• Available in many styles and materials



SUS 304 Stainless Wire Mesh Application:



Used in mine, oil, chemical industry, food industry, pharmaceutical industry and machine producing.



Industry , Agriculture , Building , Transportation , Mine , Filed , Lawn , Cultivation , Fence Guade , Decorate , Machine Protection and etc.



SUS 304 Stainless Wire Mesh Packing:



Welded wire mesh in panel: are wraped with the shrinked plastic bag then packed in the pallets.
Welded wire mesh in rolI: are by water proof paper then shrinked plastic bag as ou negotiation.
Special packing is ok as your request .



● Each welded wire mesh roll wrapped with water proof paper.
● Welded wire mesh panel is pallets packing or in wooden case.
