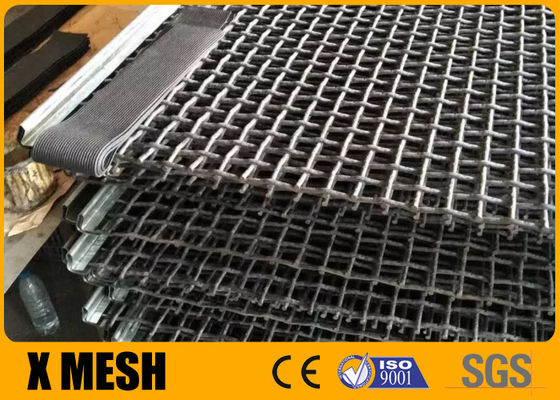

Product Details:
|
| Material: | 45# | Feature: | High Temperature Resistance |
|---|---|---|---|
| Application: | Coal Industry | Color: | Black |
| Type: | Crimped | Width: | 2m |
| Length: | 3m | Hole Size: | 22mm |
| Packing: | Pallet | ||
| High Light: | vibrating screen wire mesh 22mm,2*3m vibrating screen wire mesh,2*3m woven wire screen |
||
No. |
Steel Grade |
Chemical Composition |
||
C |
Si |
Mn |
||
1 |
45 |
0.42-0.50 |
0.17-0.37 |
0.50-0.80 |
2 |
50 |
0.47-0.55 |
||
3 |
55 |
0.52-0.60 |
||
4 |
60 |
0.57-0.65 |
||
5 |
65 |
0.62-0.70 |
||
6 |
70 |
0.67-0.75 |
||
7 |
65Mn |
0.62-0.70 |
0.90-1.20 |
|
8 |
72A |
0.70-0.75 |
0.15-0.35 |
0.30-0.60 |
NO. |
Wire diameter (mm) |
Aperture/ Hole size (mm) |
Weight (kg/sqm) |
1 |
12 |
75 |
- |
2 |
10 |
38 |
- |
3 |
9 |
32 |
25 |
4 |
8 |
22 |
- |
5 |
7 |
25 |
19.5 |
6 |
6 |
10 |
- |
7 |
4 |
10 |
14.5 |
8 |
2.5 |
6 |
9.3 |
9 |
2.2 |
4 |
10 |
Stainless Steel Sieving Screen Specifications |
|||
Wire Gauge (BWG) |
Aperture Size (mm) |
Wire Dia. (mm) |
Weight(Kg/m2) |
8 |
30 |
4.06 |
6.00 |
8 |
25 |
4.06 |
7.00 |
8 |
20 |
4.06 |
8.00 |
8 |
15 |
4.06 |
1.00 |
8 |
12 |
4.06 |
13.000 |
8 |
10 |
4.06 |
15.000 |
10 |
30 |
3.25 |
4.00 |
10 |
25 |
3.25 |
4.70 |
10 |
20 |
3.25 |
5.80 |
10 |
15 |
3.25 |
7.40 |
10 |
10 |
3.25 |
10.000 |
12 |
30 |
2.64 |
2.70 |
12 |
12 |
2.64 |
3.20 |
12 |
20 |
2.64 |
3.90 |
12 |
15 |
2.64 |
5.00 |
12 |
10 |
2.64 |
7.00 |
14 |
20 |
2.03 |
2.38 |
14 |
15 |
2.03 |
3.10 |
14 |
12 |
2.03 |
3.70 |
14 |
10 |
2.03 |
4.35 |
14 |
8 |
2.03 |
5.22 |
14 |
6 |
2.03 |
6.52 |
14 |
4 |
2.03 |
8.68 |
14 |
3 |
2.03 |
10.400 |
16 |
15 |
1.63 |
2.03 |
16 |
10 |
1.63 |
2.90 |
16 |
8 |
1.63 |
3.50 |
16 |
6 |
1.63 |
4.40 |
16 |
4 |
1.63 |
5.99 |
18 |
12 |
1.22 |
1.43 |
18 |
10 |
1.22 |
1.68 |
18 |
8 |
1.22 |
2.05 |
18 |
6 |
1.22 |
2.62 |
18 |
4 |
1.22 |
3.62 |
18 |
3 |
1.22 |
4.48 |
20 |
12 |
0.91 |
0.82 |
20 |
10 |
0.91 |
0.96 |
20 |
8 |
0.91 |
1.18 |
20 |
5 |
0.91 |
1.78 |
20 |
4 |
0.91 |
2.15 |
20 |
3 |
0.91 |
2.69 |
