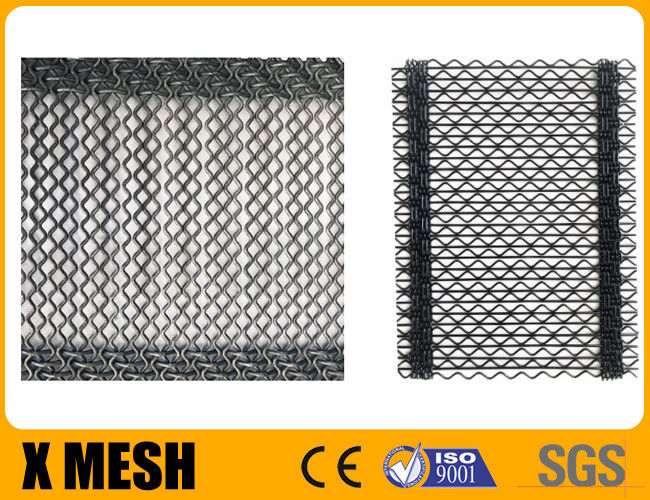

65Mn Woven Wire Mesh Vibrating Screen Crimped High Temperature Resistant

65Mn Woven Wire Mesh Vibrating Screen Crimped High Temperature Resistant
65Mn Woven Wire Mesh Vibrating Screen Crimped High Temperature Resistant 65Mn Woven Wire Mesh Vibrating Screen Crimped High Temperature Resistant

Large Image :  65Mn Woven Wire Mesh Vibrating Screen Crimped High Temperature Resistant

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-0259
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: USD3.5-5.85/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000m2/week

65Mn Woven Wire Mesh Vibrating Screen Crimped High Temperature Resistant

Description
Material: 45# Wire Diameter: 8mm
Application: Plastic Industry Color: Black
Type: Crimped Width: 2m
Standard: ASTM A853 Hole Size: 22mm
Feature: High Temperature Resistance Packing: Pallet
High Light:

65Mn wire mesh vibrating screen

,

wire mesh vibrating screen Crimped

,

65Mn Woven Wire Mesh

ASTM A853 Standard High temperature resistance Plastic industry 65Mn Vibrating Screen





65Mn Vibrating Screen Introduction:







65Mn Vibrating Screen Mesh

Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life.

Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.



Specifications

Material: High tensile manganese steel.
Wire diameter: 1.5mm - 12.8mm.
Opening size: 2mm - 110mm.
Hole type: Square mesh, rectangular mesh.
Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
Surface treatment: Galvanized before weave and galvanized after weave, painted.





  • Material: 65Mn Steel

  • Wire diameter: 0.5-12.7mm

  • Weaving type: Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommend for Mining Screen Usage)

  • Aperture/opening: 1.0mm-150mm

  • Size: in sheet or in roll, width up to 6meter, length up to 100meters.

  • General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.

  • Surface finishing: Mill finish, Anti-rust oil spraying, PVC coating



Product Name: crimped wire mesh, Square wire mesh, quarry screen mesh, mining screen wire mesh

Material: mild steel/low carbon steel, carbon iron wire, 65Mn steel wire.

Wire diameter: 0.5-22mm
Hole size: 1-30mm or as your requested

Width: 0.5-1.5m

Length: 1-30m or as your requestd



65Mn Vibrating Screen Standard Specification:



vibrating screen Material Details:

No.

Steel Grade

Chemical Composition

C

Si

Mn

1

45

0.42-0.50

0.17-0.37

0.50-0.80

2

50

0.47-0.55

3

55

0.52-0.60

4

60

0.57-0.65

5

65

0.62-0.70

6

70

0.67-0.75

7

65Mn

0.62-0.70

0.90-1.20

8

72A

0.70-0.75

0.15-0.35

0.30-0.60



65Mn vibrating screen Specification:

NO.

Wire diameter (mm)

Aperture/ Hole size (mm)

Weight (kg/sqm)

1

12

75

-

2

10

38

-

3

9

32

25

4

8

22

-

5

7

25

19.5

6

6

10

-

7

4

10

14.5

8

2.5

6

9.3

9

2.2

4

10



Stainless Steel Sieving Screen Specifications

Wire Gauge (BWG)

Aperture Size (mm)

Wire Dia. (mm)

Weight(Kg/m2)

8

30

4.06

6.00

8

25

4.06

7.00

8

20

4.06

8.00

8

15

4.06

1.00

8

12

4.06

13.000

8

10

4.06

15.000

10

30

3.25

4.00

10

25

3.25

4.70

10

20

3.25

5.80

10

15

3.25

7.40

10

10

3.25

10.000

12

30

2.64

2.70

12

12

2.64

3.20

12

20

2.64

3.90

12

15

2.64

5.00

12

10

2.64

7.00

14

20

2.03

2.38

14

15

2.03

3.10

14

12

2.03

3.70

14

10

2.03

4.35

14

8

2.03

5.22

14

6

2.03

6.52

14

4

2.03

8.68

14

3

2.03

10.400

16

15

1.63

2.03

16

10

1.63

2.90

16

8

1.63

3.50

16

6

1.63

4.40

16

4

1.63

5.99

18

12

1.22

1.43

18

10

1.22

1.68

18

8

1.22

2.05

18

6

1.22

2.62

18

4

1.22

3.62

18

3

1.22

4.48

20

12

0.91

0.82

20

10

0.91

0.96

20

8

0.91

1.18

20

5

0.91

1.78

20

4

0.91

2.15

20

3

0.91

2.69



65Mn Vibrating Screen Feature:



  • Resistant to wear and abrasions

  • Highly resistant to heavy impact

  • High temperature resistance

  • High tensile strength

  • Tough design

  • Long service life

  • Excellent stability

  • Improved the separating efficiency

* wearable

* high temperature-proof.

* Good toughness, shake-proof and draw-proof

* keep-distance, better rate filter than sheet iron screen.





















65Mn Vibrating Screen Application:



  • Heavy Screening & Sieving Of Coal Mines.

  • Stone Quarry Works

  • Wire Mesh For Pig Breeding

  • Coal Mine

  • Cement Plant

  • The Cement Factory Petroleum

  • Glass Factory

  • Hardware Products.

  • Construction industry

  • Metallurgy industry

  • Mineral industry

  • Agriculture industry

  • Plastic industry

  • Coal industry

  • Chemical industry

The heavy duty crimped wire mesh are always used in mine, coal industry for sieving the stone and sand.
