Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm

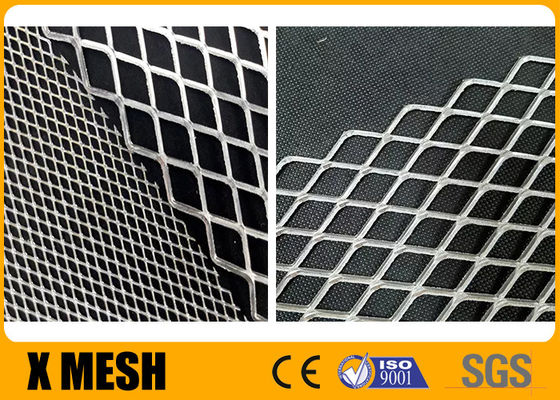

Large Image : Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Expanded Metal Mesh-010

Payment & Shipping Terms:

Minimum Order Quantity:	100m2
Price:	USD11.25-15.85/m2
Packaging Details:	Wrapped with plastic film and wooden case packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm

Description

Product Name:	Expanded Metal Mesh	Strand Width:	1.85mm
Sheet Size:	1250 X 2500mm	Type:	Raised/Flattened
Pitch LWP:	19.05mm	Pitch SWP:	7.43mm
Aperture Long Way:	14.22mm	Aperture Short Way:	4.83mm
Open Area:	57%	Thickness:	1mm
High Light:	width 1.85mm flattened expanded metal mesh , 1250 x 2500mm flattened expanded metal mesh , iso flattened expanded mesh

Strand Width 1.85mm Sheeet Size 1250 x 2500mm Flattened Expanded Metal Mesh

Expanded Metal Mesh Introduction:

Expanded Metal Mesh is formed by passing regular or raised expanded metal through a cold rolled reducing mill. In this process the overall thickness is reduced. The sheet is then sent through a leveler to maintain its flatness. A smooth, level flattened expanded metal sheet is created.

Product name	Expanded Metal Mesh
Strand Width	1.85mm
Sheet Size	1250 x 2500mm
Type	Raised/Flattened
Pitch LWP	19.05mm
Pitch SWP	7.43mm
Aperture Long Way	14.22mm
Aperture Short Way	4.83mm
Open Area	57%
Thickness	1mm

Expanded Metal MeshSpecification:

Flattened Carbon Steel Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/4" x #20F	82	.25	1.05	.110	.715	.030	.079	.030	48	11.6	35
1/4" x #18F	108	.25	1.05	.118	.715	.040	.080	.040	48	11.6	35
1/2" x #20F	40	.50	1.25	.375	1.00	.029	.079	.029	24	9.5	65
1/2" x #18F	66	.50	1.25	.312	1.00	.039	.097	.039	24	9.5	63
1/2" x #16F	82	.50	1.25	.312	1.00	.050	.096	.050	24	9.5	63
1/2" x #13F	140	.50	1.25	.265	1.00	.078	.107	.078	24	9.5	52
3/4" x #16F	54	.923	2.00	.813	1.75	.060	.101	.210	13	6	78
3/4" x #13F	80	.923	2.00	.750	1.688	.090	.096	.205	113	6	76
3/4" x #10F	120	.923	2.00	.750	1.625	.090	.144	.290	13	6	72
3/4" x #9F	180	.923	2.00	.688	1.562	.134	.150	.32	13	6	68
1" x #16F	41	1.00	2.50	.813	2.250	.050	.098	.050	12	4.68	78
1-1/2" x #16F	40	1.33	3.00	1.25	2.625	.060	.108	.230	9	4	85
1-1/2" x #13F	60	1.33	3.00	1.188	2.500	.090	.105	.242	9	4	85
1-1/2" x #10F	79	1.33	3.00	1.188	2.500	.090	.138	.284	9	4	80
1-1/2" x #9F	120	1.33	3.00	1.125	2.375	.134	.144	.312	9	4	76
1-1/2" x #6F	250	1.33	3.00	1.110	2.375	.94	.203	.433	9	4	69

Flattened Stainless Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/2" x #18F	69	.50	1.25	.31	1.00	.40	.093	.040	24	10	68
1/2" x #16F	86	.50	1.25	.31	1.00	.050	.093	.040	24	10	60
1/2" x #13F	178	.50	1.25	.25	1.00	.080	.132	.080	24	10	56
3/4" x #18Fv	46	.92	2.10	.75	1.81	.040	.118	.040	13	6	77
3/4" x #16F	57	.92	2.10	.75	1.81	.050	.118	.050	13	6	75
3/4" x #13F	87	.92	2.10	.63	1.75	.070	.120	.070	13	6	74
3/4" x #9F	195	.92	2.10	.56	1.69	.119	.160	.119	13	6	64
1-1/2" x #16F	43	1.33	3.20	1.06	2.75	.050	.124	.050	9	4	83
1-1/2" x #13F	65	1.33	1.00	2.63	.079	.079	.124	.079	9	4	79
1-1/2" x #9F	131	1.33	3.20	0.94	2.63	.119	.165	.199	9	4	76

Flattened Galvanized Expanded Metal

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/4" x #20F	82	.25	1.05	.110	.715	.030	.079	.030	48	11.6	35
1/4" x #18F	108	.25	1.05	.118	.715	.040	.080	.040	48	11.6	35
1/2" x #20F	40	.50	1.25	.375	1.00	.029	.079	.029	24	9.5	65
1/2" x #18F	66	.50	1.25	.312	1.00	.039	.097	.039	24	9.5	60
1/2" x #16F	82	.50	1.25	.312	1.00	.050	.096	.050	24	9.5	63
1/2" x #13F	140	.50	1.25	.265	1.00	.078	.107	.078	24	9.5	52
3/4" x #16F	54	.923	2.00	.813	1.75	.060	.101	.210	13	6	78
3/4" x #13F	80	.923	2.00	.750	1.688	.090	.096	.205	13	6	76
3/4" x #10F	120	.923	2.00	.750	1.625	.090	.144	.290	13	6	722
3/4" x #9F	180	.9223	2.00	.688	1.562	.134	.150	.312	13	6	68
1" x #16F	41	1.00	2.50	.813	2.250	.050	.098	.050	112	4.68	78
1-1/2" x #16F	40	1.33	3.00	1.25	2.625	.060	.108	.230	9	4	85
1-1/2" x #13F	60	1.33	3.00	1.188	2.500	.090	.105	.242	9	4	85
1-1/2" x #10F	79	1.33	3.00	1.188	2.500	.090	.138	.284	9	4	80
1-1/2" x #9F	120	1.33	3.00	1.125	2.375	.134	.144	.312	9	4	76
1-1/2" x #6F	250	1.33	3.00	1.110	2.375	.194	.203	.433	9	4	69

Flattened Aluminum Expanded Metal Sheet

Style	Lbs. Per 100 sq. ft.	Design Sizes (Inches)		Opening Size (Inches)		Approx. Strand Size (Inches)		Overall Thickness (Inches)	Approx. No. Diamonds Per Ft.		Open Area %
		SWD	LWD	SWO	LWO	Thickness	Width		SWD	LWD
1/2" x .051F	26	50	1.27	.312	1.00	.040	.104	.040	24	9.5	61
1/2" x .081F	42	.50	1.27	.312	1.00	.060	.105	.060	24	9.5	58
3/4" x .051F	16	.92	2.125	.75	1.812	.040	.122	.040	13	6	72
3/4" x .081LF	30	.92	2.125	.687	1.75	.070	.143	.070	13	6	70
3/4" x .081HF	39	.92	2.125	.687	1.75	.070	.181	.070	13	6	63
3/4" x .125F	62	.92	2.125	.625	1.75	.095	.187	.095	13	6	62
1-1/2" x .081F	21	1.33	3.15	1.06	2.75	.060	.143	.060	9	4	77
1-1/2" x .125F	41	1.33	3.15	1.00	2.75	.080	.181	.080	9	4	70

Expanded Metal Mesh Classification:

Flattened expanded metal is defined by Type, Class and Grade per ASTM F1267. Type and Class are required when specifying and ordering.

Type I—Expanded

Type II—Expanded and flattened

Class 1—Uncoated.

Class 2—Hot-dip zinc-coated (galvanized).

Class 3—Corrosion-resisting steel.

Grade A—0.0025 in. (0.06 mm) minimum coating thickness.

Grade B—0.0012 in. (0.03 mm) minimum coating thickness.

The illustration to the right shows that the strands and bonds form a sharp angle to the original plane of the solid sheet.

Sheets are expanded in the regular form and then passed through a cold rolled reducing mill. This process elongates the length of the sheet about 5%. The width of the sheet remains the same. The sheet is then sent through a leveler to maintain its flatness.

Expanded Metal Mesh Feature:

Economical
Durable
Extremely versatile
Easy installation
Low resistance to wind loads
Easily cut to fit
Many material options, such as carbon steel, stainless expanded metal, galvanized and aluminum expanded metal

Expanded Metal Mesh Application:

Cages
Fan Guards
Racks and trays
Screens and filters
Enclosures
Trays and part bins
Fencing
Dipping/degreasing baskets
Grain dryers
Patio furniture
Fan guards
Screen door guards
Truck window guards
Screens and filters
Shelving

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 0

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 1

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 2

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 3

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 4

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 5

Strand Width 1.85mm Flattened Expanded Metal Mesh Sheeet Size 1250 X 2500mm 6
