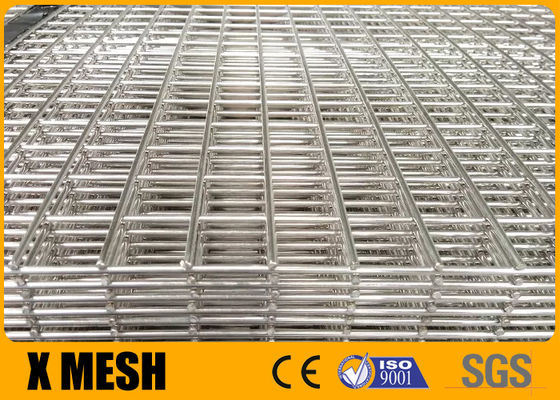

Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304

Large Image : Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Stainless Steel Welded Mesh 005

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	USD1.85-2.35/m2
Packaging Details:	Wrapped with plastic film and pallet packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	85000m2/week

Contact Now

Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304

Description

Product Name:	Stainless Steel Mesh Panel	Grade:	304
Application:	For Industrial	Width:	1.2m
Length:	2.4m	L/W Spacing:	25mm
C/W Spacing:	25mm	L/W Diam:	2.5mm
C/W Diam:	2.5mm	Weight (kg):	9.02
Highlight:	2.4m x 1.2m stainless steel mesh panel , industrial grade stainless steel mesh panel , 304 stainless steel wire mesh panels

Length 2.4m Width 1.2m Industrial Grade 304 Stainless Steel Mesh Panel

Stainless Steel Mesh Panel Introduction:

Stainless steel is the optimum solution for your general purpose welded mesh panels. By selecting stainless steel you will utilise the numerous benefits including:

✔ Long term performance
✔ Minimal maintenance
✔ Strength
✔ Life cycle costing
✔ Low environmental impact

Stainless steel welded mesh is manufactured by the longitudinal and transverse wires being resistance welded together.

Product Name	Stainless Steel Mesh Panel
Grade	304
Application	For Industrial
Width	1.2m
Length	2.4m
L/W Spacing	25mm
C/W Spacing	25mm
L/W Diam	2.5mm
C/W Diam	2.5mm
Weight (kg)	9.02

Stainless Steel Mesh Panel Specification:

Grade	Length	Width	L/W Spacing	C/W Spacing	L/W Diam	C/W Diam	Weight (kg)
304	2.4m	1.2m	25mm	25mm	2.5mm	2.5mm	9.02
304	2.4m	1.2m	50mm	25mm	3.15mm	3.15mm	10.79
304	2.4m	1.2m	50mm	50mm	3.15mm	3.15mm	7.27
304	2.4m	1.2m	50mm	50mm	4mm	4mm	11.72
304	2.4m	1.2m	50mm	50mm	5mm	5mm	12.4
304	2.4m	1.2m	50mm	75mm	5mm	5mm	15.35
316	2.4m	1.2m	25mm	25mm	2.5mm	2.5mm	9.02
316	2.4m	1.2m	50mm	50mm	3.15mm	3.15mm	7.27
316	2.4m	1.2m	50mm	50mm	4mm	4mm	11.72
316	2.4m	1.2m	50mm	50mm	5mm	5mm	12.4

Stainless Steel Mesh Panel Feature:

* Smooth mesh surface and bright luster
* Well-proportioned meshes
* Strong welded points
* High solid structure
* Corrosion-resisting
* Oxidation-resisting

Stainless Steel Mesh Panel Application:

Industrial Wire Mesh panels used for various applications such as guards, covers, trailers, cages and fences. Also available in Zinc Aluminium, please enquire. Minimun order quantity applies.

Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304 0

Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304 1

Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304 2

Length 2.4m Width 1.2m Stainless Steel Mesh Panel Industrial Grade 304 3
