Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled

Certification
China Anping Yuanfengrun Mesh Products Co., Ltd. certification
I'm Online Chat Now

Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled

Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled
Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled

Large Image :  Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Palisade Fence07
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: USD25.00-75.00/Set
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

Hot Dipped Galvanized Security Metal Fencing D & W Silver Color Easily Assembled

Description
Name: Security Metal Fencing Material: Q235 Steel
Height: 1800mm, 2200mm, 2400mm Width: 2750mm, 3000mm
Pales: 71x2.0x1800/2200/2400mm PCS Of Pales: 17
Packing: Steel Pallet/Wooden Case Feature: Easily Assembled & Durable
Pale Section: W Type, D Type, Angle Type Application: For Border Protection
High Light:

q235 security metal fencing

,

1800mm high security metal fencing

,

hot dipped galvanized steel security fencing

 Hot Dipped Galvanized D & W Security Metal Fencing Silver Color Easily Assembled



Security Metal Fencing Description:

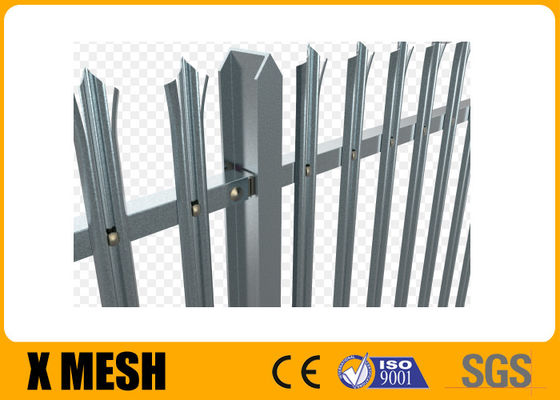

Palisade fence is a high security fencing, it is very popular in Europe market, Australia market, South Africa market.It is widely used to protect and deter general attack from all types and conditions of intrusion. The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span.

Name

Security Metal Fencing

Material

Q235 Steel

Height

1800mm, 2200mm, 2400mm

Width

2750mm, 3000mm

Pales

71x2.0x1800/2200/2400mm

PCS of Pales

17

Packing

Steel Pallet/Wooden Case

Feature

Easily Assembled & Durable

Pale Section

W Type, D Type, Angle Type

Application

For border protection



Security Metal Fencing Specification:

Height
(mm)

Width
(mm)

Pales

(mm)

PCS of Pales

Angle rail
(mm)

PCS of rail

H Post

PCS of post

1800

2750

71x2.0x1800

17

50x50x4x2750

2

100x55x2200

1

2200

2750

71x2.5x2200

17

50x50x4x2750

2

100x55x2600

1

2400

3000

71x3.0x2400

17

50x50x5x2750

2

100x55x3000

1



Pales- "W" section Most using type for palisade fencing as vertical pales ,it is always the first choice for the pales .

Width

Thickness

Surface Treatment

Head

Height

68mm
-
70mm

2.0mm
2.5mm
3.0mm

Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized

Single point
Triple point

1200mm

1500mm

1800mm

2000mm

2100mm

2400mm

2700mm

3000mm


Comparing with "W" profile pales , this type is more economical.

Width

Thickness

Surface Treatment

Head

Height

68mm
-
70mm

2.0mm
2.5mm
3.0mm

Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized

Single point
Triple point

1200mm

1500mm

1800mm

2000mm

2100mm

2400mm

2700mm

3000mm


Its cost is similar with "D" profile ,and more simple than "D" profile.

Width

Thickness

Surface Treatment

Head

Height

40x40

2.0mm
-
3.0mm

Galvanized and
Electrostatic polyester powder coated or hot dipped galvanized

Single point

1200mm

1500mm

1800mm

2000mm

2100mm

2400mm

2700mm

3000mm



Security Metal Fencing Feature:

  • Palisade fence: One pointed, triple pointed, rounded, rounded & notched and square top.

  • Palisade gate: Singular leaf or double leaf, swing or sliding gate, cantilever gate.

  • Steel palisade fence: Made of low carbon steel, mild steel, hot or cold rolled steel.

  • Galvanized palisade fence: Palisade fence or palisade gate can be finished with hot-dipped or electric galvanized.

  • Palisade pales: The pales can be W section, D section and angle section.

  • Palisade post: The palisade posts have square type and RSJ beam type.

  • Palisade rail: Angle type with slots to fix.

  • Palisade fittings: Connecting parts include fishplates, post clamps, bolts and nuts.



Security Metal Fencing Application:



Palisade is the ideal solution for any business, school or public space in need of a strong, durable perimeter.

Powder coating in an array of colours means that this product can be matched to corporate and brand identities or

customised to assimilate with surrounding environments.



Whye Choose us:

1.Our factory specialize in design,manufacturing galvanized steel or aluminium fence, railing etc

2. Experienced sales team, engineer team, designer team and skillful workers.

3. Advanced equipment, mature production technology, strong production capability.

3. Our products surface is made of branded powder, with strong lacquer coating and strong adhsion Strict quality control system, environment friendly and anti-corrosion.

4. Perfect after-sales service,15-year maintenance.

5. Assembled product is convenient for transportation
