Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated

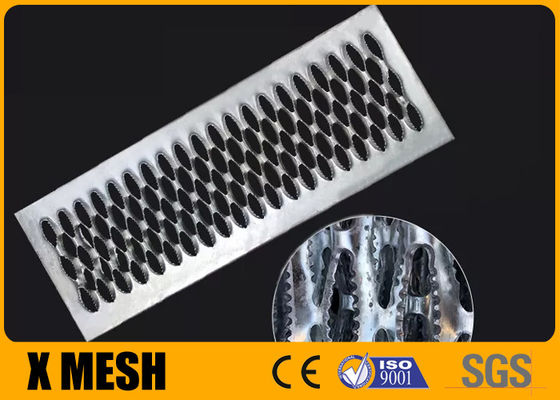

Large Image : Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Anti Slip Tread-05

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD15.8-35.85/PC
Packaging Details:	Wrapped with plastic film and pallet packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	9500pcs/week

Contact Now

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated

Description

Product Name:	Grating Stair Treads	Material:	A36 Steel
Diamond Pattern:	8 Diamonds	Width:	36"
Channel Depth:	1-1/2"	Feature:	High Strength
Application:	Transportation Facilities	Color:	Silver
Hole Type:	Diamond	Packing:	Plastic Film & Pallet Packing
High Light:	Galvanized Steel Grating Stair Treads , Traction Aluminum Bar Grating Stair Treads , Perforated Grip Strut Treads

Traction Aluminum Bar Galvanized Steel Grating Stair Treads , Perforated Grip Strut Treads

Grating Stair Treads Introduction:

Grtp Strut Grating Plates are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring.

Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical,

slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or

specifying splice plates as illustrated below.

Product name	Grating Stair Treads
Material	A36 Steel
Diamond Pattern	8 Diamonds
Width	36"
Channel Depth	1-1/2"
Feature	High Strength
Application	transportation facilities
Color	Silver
Hole Type	Diamond
Packing	Plastic film & Pallet Packing

Grating Stair Treads Standards:

Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463

Grating Stair Treads Specification:

Name	Steel Grating Stair
Application	Catwalks, stair tread, vehicle steps, work platforms Etc
Material	Carbon steel, zinc plate, aluminum plate		stainless steel
Thickness	2.0MM,2.5MM,3.0MM,3.5MM,4.0MM,4.5MM,5.0MM,5.5MM,6.0MM		1.5MM,2.0MM,2.5MM,3.0MM
Size	Width	Customized
	Length	Customized
	Height	30MM,40MM,50MM,75MM,115MM ETC
	Fold back	15MM,18MM,20MM,25MM,30MM ETC
Surface treatment	Base on requirement

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
5 Diamonds	23-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

6 Diamond / 27-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
6 Diamonds	27-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

8 Diamond / 36" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
8 Diamonds	36"	1-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

Grating Stair Treads Feature:

1, high strength, good carrying capacity.

2, long working life, low maintenance cost.

3, slip resistance is best, slip resistance is in all directions

4, safety factor is good, grip strut grating is good at work in bad weather such as snow, ice, rain etc.

5, protection workers, cutting down work injury.

Grating Stair Treads Packing & Shipping:

Packaging Details: Pallet or with plastic film inside of art product anti slip tread

Delivery Time: Within 15 days upon receipt your advance payment

Grating Stair Treads Application:

works great as the safety grating of sewage treatment plant,power
plant,and work plant,etc,as well as the platform scaffoldings and stair treads for snowy

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated 0

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated 1

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated 2

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated 3

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated 4

Traction Aluminum Bar Galvanized Steel Grating Stair Treads Perforated 5
