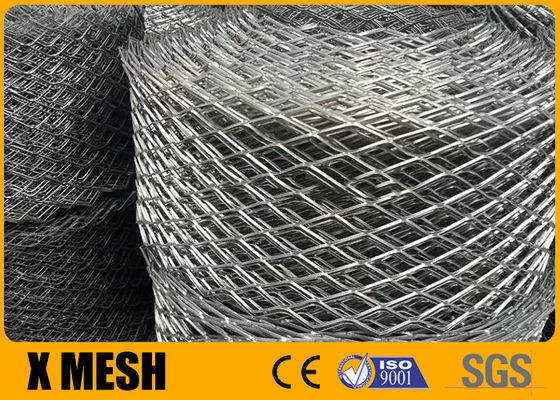

Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size

Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size
Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size

Large Image :  Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Brick Mesh-002
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: USD11.25-15.85/m2
Packaging Details: Wrapped with plastic film and wooden case packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram

Galvanized Brick Wall Mesh With 10mm X 10mm Mesh Size

Description
Product Name: Brick Wall Mesh Material: Galvanized Steel
SWD*LWD: 15mm*25mm Coil Width: 100mm
Length: 20m Packing: Plastic Film And Pallet Packing
Applications: For Construction Color: Silver
Feature: Easy To Install Type: Expanded
High Light:

Galvanized Brick Reinforcing Coil

,

Galvanized Brick Wall Mesh

,

10mm X 10mm Brick Wire Mesh



Galvanized Brick Wire Mesh coil mesh brick wall mesh with 10mm X 10mm mesh size

Brick Wall Mesh Introduction:

Brick wall Mesh is made of the hot dipped plate.And We could produce the width 10cm-30cm.Length :5m-200m .Now the very popular length is 15m.This goods is easy to cut.Make the brick building stronger.Brick Wall Mesh use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.



Product name

Brick Wall Mesh

Material

Galvanized steel

SWD*LWD

15mm*25mm

Coil width

100mm

Length

20m

Packing

plastic film and pallet packing

Applications

For Construction

Color

Silver

Feature

Easy to Install

Type

Expanded

Brick Wall Mesh Specification:



Mesh size (MM)

Weight (kg/m2)

Thickness (mm)

Coil width (mm)

Coil length (m)

10mm X 10mm

0.55

0.35-0.5

60/100/150/200

10m,20m, 30m

15mm X 10mm

0.55

0.35-0.5

60/100/150/200

10m,20m, 30m

18mm X 10mm

0.55

0.35-0.5

60/100/150/200

10m,20m, 30m

25mm X 12mm

0.55

0.35-0.5

60/100/150/200

10m,20m, 30m



Hole Type: Diamond

Hole Size: 12*25mm

width: 6.5cm,8cm,10cm, 15cm, 20cm,25cm,30cm

Length: 10m-100m

Hole Type:

Hole Size

Width

Length

Diamond

12*25mm

10cm-30cm5

5-100m



Brick Wall Mesh Installation





The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .





Brick Wall Mesh Application:

concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc.
