304 17 X 16 Fly Screen Mesh Stainless Steel Weaving Wire For Doors

Large Image : 304 17 X 16 Fly Screen Mesh Stainless Steel Weaving Wire For Doors

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Stainless Steel Mesh-003

Payment & Shipping Terms:

Minimum Order Quantity:	50m2
Price:	USD25.50-30.85/m2
Packaging Details:	Wrapped with plastic film and wooden case packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5000m2/week

Contact Now

304 17 X 16 Fly Screen Mesh Stainless Steel Weaving Wire For Doors

Description

Product Name:	Fly Screen Mesh	Material:	316L Stainless Steel Wire
Wire Diameter:	1.2mm	Mesh/inch:	11x11mesh
Width:	1200mm	Length:	2400mm
Application:	For Doors	Color:	Black
Feature:	Alkali Proof	Packing:	Plastic Film & Pallet Packing
High Light:	17 x 16 fly screen mesh , 304 stainless steel fly screen mesh , 1.2mm stainless steel fly screen doors

304 17 X 16 Fly Screen Mesh , Stainless Steel Weaving Wire Mesh Screen for Doors

Fly Screen Mesh Introduction:

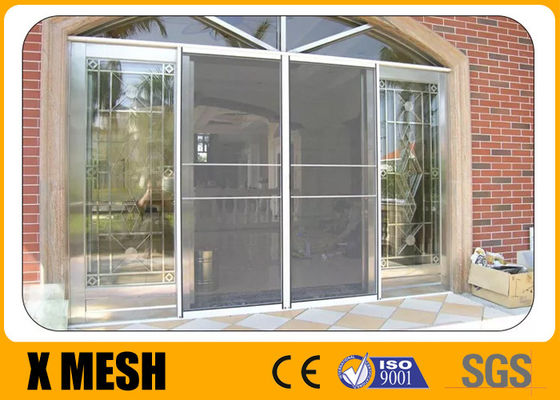

Stainless steel insect screen, also known as stainless steel window screen, insect screening, stainless steel fly screen, security mesh, stainless steel bug screen, it is designed to cover the opening of a window or door.

Product name	Fly Screen Mesh
Material	316L stainless steel wire
Wire Diameter	1.2mm
Mesh/inch	11x11mesh
Width	1200mm
Length	2400mm
Application	For Doors
Color	Black
Feature	alkali proof
Packing	Plastic film & Pallet Packing

Fly Screen Mesh Specification:

Material	Mesh Size	Hole Size	Sheet Size
General tensile 316 Marine grade stainless steel wire	8mesh×1.2mm	2.0mm	Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm
	9mesh×1.0mm	1.8mm
	10mesh×0.8mm	1.8mm
	10mesh×0.9mm	1.6mm
	10mesh×1.0mm	1.5mm
	11mesh×0.8mm	1.5mm
	11mesh×0.9mm	1.4mm
	12mesh×0.7mm	1.4mm
	12mesh×0.8mm	1.3mm
	12mesh×0.9mm	1.2mm
	14mesh×0.5mm	1.3mm
	14mesh×0.55mm	1.2mm
	14mesh×0.6mm	1.2mm
	18mesh×0.32mm	1.0mm

High tensile 316 Marine grade stainless steel wire	8mesh×1.2mm	2.0mm	Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm
	8mesh×1.3mm	1.9mm
	9mesh×0.9mm	1.9mm
	9mesh×1.0mm	1.8mm
	10mesh×0.9mm	1.6mm
	10mesh×1.0mm	1.5mm
	11mesh×0.8mm	1.5mm
	11mesh×0.9mm	1.4mm
1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box

Chemical composition of stainless steel wire:
Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=0.08	=1.00	=2.00	=0.045	=0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=1.00	=2.00	=0.045	=0.030	8.00~10.50	18.00~20.00	-
304L	=0.030	=1.00	=2.00	=0.045	=0.030	9.00~13.50	18.00~20.00	-
316	=0.045	=1.00	=2.00	=0.045	=0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=0.030	=1.00	=2.00	=0.045	=0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=0.12	=0.75	=1.00	=0.040	=0.030	=0.60	16.00~18.00	-
430A	=0.06	=0.50	=0.50	=0.030	=0.50	=0.25	14.00~17.00	-

Fly Screen Mesh Benifites:

Excellent resistance to corrosion and impact.
Quality meets the demands of GB/T 1220–2007 Stainless Steel Rod standard grade.
Good privacy protection and aesthetic effect.
Easy to install with flat and straight surface.
Good air circulation & high quality daylighting.

Fly Screen Mesh Our Testing Standards
1. Diagonal Deviation, strict controls of +/- 5mm
2. Fine Grinding - The Surface Treatment Of 0.03mm
3. Double Plain Weave High Hardness To Bulletproof
4. Precipitation Of Metal Cons ,Non Magnetic
5. Steel Wire After Micron Grade Precision Machining

Fly Screen Mesh Standards

1. Knife Shear Test(AS5039-2008)
2. Anti-Jemmy Test(AS509-2008)
3. Pull Test(AS5039-2008)
4. Durable more than 10 years(AS2331.31-2001)
5. 3006 Hour Salt Spray Tests, 534 hours UV Test
6. Aluminium Frame Tests
7. Stainless Mesh Tests

Fly Screen Mesh Application:

Widely used in civil construction and industrial manufacturing, especially in the coastal and other corrosive work environment is more popular. For example, the usage of high-grade office buildings, residential buildings, and the properties of the door, orchard preferred protection products.
