3m Width Woven Metal Mesh 30m Length As Fish Cage

3m Width Woven Metal Mesh 30m Length As Fish Cage
3m Width Woven Metal Mesh 30m Length As Fish Cage 3m Width Woven Metal Mesh 30m Length As Fish Cage

Large Image :  3m Width Woven Metal Mesh 30m Length As Fish Cage

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Copper Mesh-005
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: USD15.8-38.5/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000m2/week

3m Width Woven Metal Mesh 30m Length As Fish Cage

Description
Product Name: Copper Alloy Net Material: Copper Alloy Wire
Wire Diameter: 3.0mm Mesh Opening: 30 × 30 Mm
FCR: 15% Improvement Feed Use: 10% Reduction
Antibiotics: 31% Reduction Labor Hours/tonne: 79% Reduction
On-site Energy Use: 15% Reduction Mortality: Less Than 4%
High Light:

fish cage woven mesh

,

3m width woven metal mesh

,

30m length woven metal mesh

Copper Alloy Net with Tough structure 3m Width Little maintenance 30m Length as fish cage



Copper Alloy Net Introduction:



Copper alloy fish cage provides large inner space, which perfect for water circulation and flow.

Copper alloys are an important material in aquaculture. Apart from other material in fish farm, copper alloy is an anti-microbial, that is, destroys virus, bacteria, fungi, algae and other microorganisms.

Product Name

Copper Alloy Net

Material

Copper alloy wire

Wire Diameter

3.0mm

Mesh Opening

30 × 30 mm

FCR

15% improvement

Feed use

10% reduction

Antibiotics

31% reduction

Labor hours/tonne

79% reduction

On-site energy use

15% reduction

Mortality

less than 4%



Copper Alloy Net Standard Specification:



Specifications of copper alloy aquaculture mesh

  • Welded wire mesh.

    • Material: copper alloy wires.

    • Wire diameter: 2.5 mm – 4.0 mm.

    • Mesh size: 25 mm – 40 mm.

    • Mesh type: square.

    • Lifespan: at least 5 years.

  • Chain link mesh.

    • Wire diameter: 2.5 mm – 4.0 mm.

    • Mesh type: diamond.

    • Lifespan: 5 – 8 years. Detailed according to the specific application.

  • Expanded metal mesh.

    • Sheet thickness: 1 mm – 2 mm.

    • Mesh size: 25 mm – 40 mm.

    • Mesh type: diamond.

    • Open area: 73% – 76%.

    • Lifespan: at least 10 years. Detailed according to the specific application.

  • Crimped wire mesh.

    • Wire diameter: 2.5 mm – 4.0 mm.

    • Mesh size: 25 mm – 40 mm.

    • Mesh type: square.

    • Lifespan: at least 5 years.





Mechanical Properties

Alloy

Wire Diameter

Temper

Hardness(HRB)

T/S(N/mm2)

E/L (%)

BD06 Copper

4.0 mm

1/8 H

54

440

22





Popular Sizes

Mesh Size (A)

Wire Diameter

Max. Width

12.7 mm (1/2")

0.51 mm (25#)

1.5 m (4.9')

15.9 mm (5/8")

0.62 mm (23#)

3 m (9.8')

25.4 mm (1")

0.91 mm (20#)

3 m (9.8')

25.4 mm (1")

0.81 mm (21#)

3 m (9.8')

30.5 mm (1.2")

1.01 mm (19#)

3 m (9.8')

30.5 mm (1.2")

0.91 mm (20#)

3 m (9.8')



Copper Alloy Net Feature:

  • Resist to predators.
    Copper alloy mesh has high strength and breaking strength to resist attacks from predators. Additional, it can prevent fishes from escaping from the cages.

  • Little maintenance.
    Different from the traditional aquaculture mesh, which is easy for being blocked by the biofouling, the copper alloy mesh can naturally avoid this problem, so it needs little maintenance effort to clean it. You just need clean one or two once year.

  • Recycled.
    As we all know, the copper alloy mesh has long service life. When it is broken, the materials are fully recycled to be used in initial production of copper alloy mesh or other applications.

  • Safe.
    Copper alloy wire has excellent corrosion and rust resistance performance due to its chemical property, so there is no any anti-corrosive coating, which may pollute the waters.

  • Durable and long service life.
    Copper alloy mesh has tough structure and anti-corrosive performance and other outstanding characters, which ensures the long service life of copper alloy aquaculture mesh. It can last at least 5 years in good condition and property.





Copper Alloy Net Application:

  • The copper alloy aquaculture mesh can be used in different environments.

    • Surface water.

    • Submersible marine.

    • Coastal waters.

    • Offshore sites.

    • Fresh water.

    • Sea water.

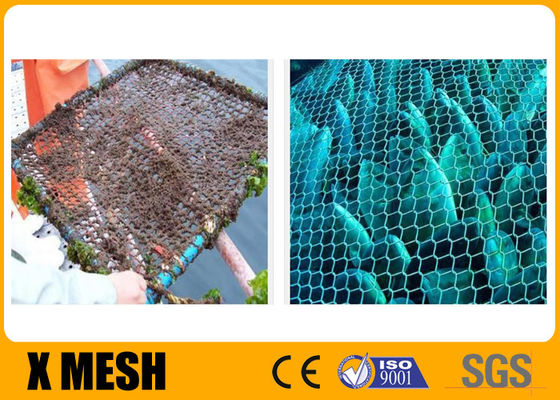

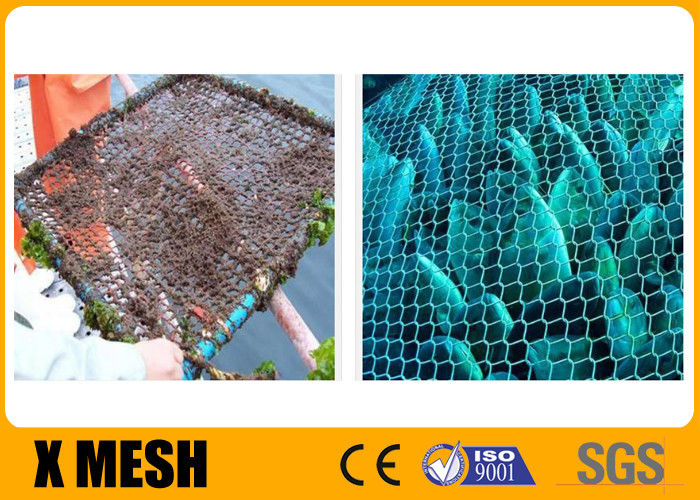

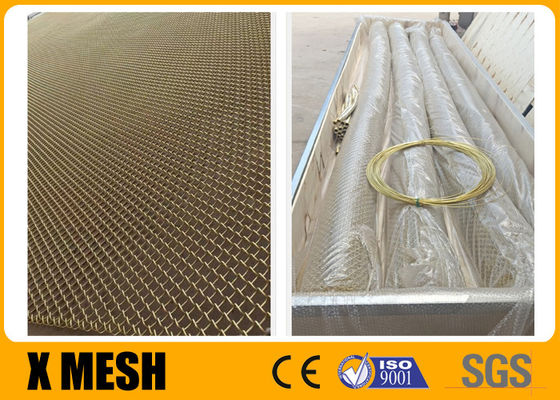

3m Width Woven Metal Mesh 30m Length As Fish Cage 0

3m Width Woven Metal Mesh 30m Length As Fish Cage 1

3m Width Woven Metal Mesh 30m Length As Fish Cage 2

3m Width Woven Metal Mesh 30m Length As Fish Cage 3

3m Width Woven Metal Mesh 30m Length As Fish Cage 4

3m Width Woven Metal Mesh 30m Length As Fish Cage 5



3m Width Woven Metal Mesh 30m Length As Fish Cage 6
