15m Long Copper Woven Wire Mesh For Fishery And Aquaculture

Certification
China Anping Yuanfengrun Mesh Products Co., Ltd. certification
I'm Online Chat Now

15m Long Copper Woven Wire Mesh For Fishery And Aquaculture

15m Long Copper Woven Wire Mesh For Fishery And Aquaculture
15m Long Copper Woven Wire Mesh For Fishery And Aquaculture 15m Long Copper Woven Wire Mesh For Fishery And Aquaculture

Large Image :  15m Long Copper Woven Wire Mesh For Fishery And Aquaculture

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Woven Wire Mesh-008
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: USD15.8-38.5/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000m2/week

15m Long Copper Woven Wire Mesh For Fishery And Aquaculture

Description
Product Name: Woven Wire Mesh Material: Copper Alloy Wire
Wire Diameter: 4.0mm Mesh Opening: 40 × 40 Mm
FCR: 15% Improvement Feed Use: 10% Reduction
Antibiotics: 31% Reduction Mesh Type: Diamond
Characteristic: Corrosion And Impact Resistance. Feature: Anti-biofouling.
High Light:

15m long copper woven wire mesh

,

fishery copper woven wire mesh

,

aquaculture woven copper mesh

Woven Wire Mesh with Corrosion and impact resistance 15m Long for Fishery and aquaculture



Woven Wire Mesh Introduction:

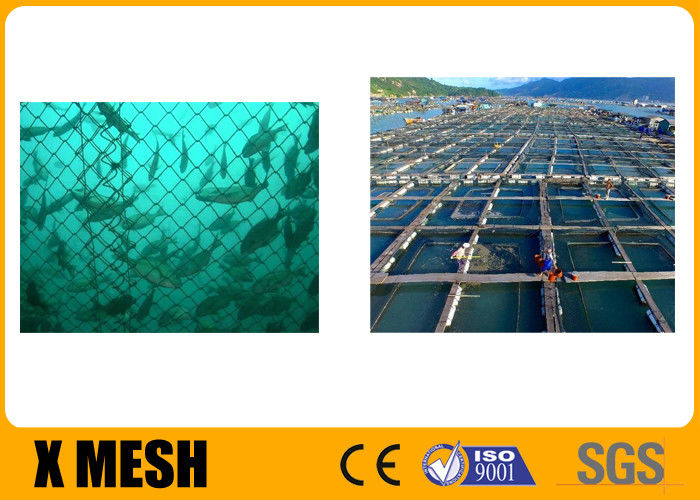

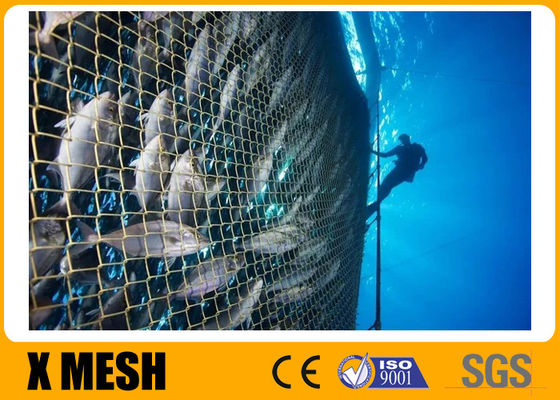

Compared to conventional mesh cages, copper alloy fish cages are weatherproof and widely used. They can defend against predators and improve fish production without harming fish health and the water environment. Extra long service life and very low maintenance costs bring full benefits to clients.

The following are relevant presentations on economic and environmental aspects.

Product Name

Woven Wire Mesh

Material

Copper alloy wire

Wire Diameter

4.0mm

Mesh Opening

40 × 40 mm

FCR

15% improvement

Feed use

10% reduction

Antibiotics

31% reduction

Mesh Type

Diamond

Characteristic

Corrosion and impact resistance.

Feature

Anti-biofouling.



Woven Wire Mesh Standard Specification:



Specifications of copper alloy aquaculture mesh

  • Welded wire mesh.

    • Material: copper alloy wires.

    • Wire diameter: 2.5 mm – 4.0 mm.

    • Mesh size: 25 mm – 40 mm.

    • Mesh type: square.

    • Lifespan: at least 5 years.

  • Chain link mesh.

    • Wire diameter: 2.5 mm – 4.0 mm.

    • Mesh type: diamond.

    • Lifespan: 5 – 8 years. Detailed according to the specific application.

  • Expanded metal mesh.

    • Sheet thickness: 1 mm – 2 mm.

    • Mesh size: 25 mm – 40 mm.

    • Mesh type: diamond.

    • Open area: 73% – 76%.

    • Lifespan: at least 10 years. Detailed according to the specific application.

  • Crimped wire mesh.

    • Wire diameter: 2.5 mm – 4.0 mm.

    • Mesh size: 25 mm – 40 mm.

    • Mesh type: square.

    • Lifespan: at least 5 years.



Material

Cu

Sn

Al

Zn

Copper alloy wire

66.0%

0.6%

0.6%

Rem.





Material

Wire diameter

Temper

Hardness

Tensile strength T/S
(N/mm2)

Elongation E/L
(%)

Copper alloy wire

4.0 mm

1/8 H

54

440

22





Material

Melting point
(°C)

Gravity
g/cm3)

Thermal conductivity (W/(m·K))

Electrical conductivity
(% IACS)

Coefficient thermal expansion
(× 10-6/°C)

Longitudinal modulus of elasticity
(N/mm2)

Copper alloy wire

920

8.4

117

26

21

1.03 × 105





Popular Sizes

Mesh Size (A)

Wire Diameter

Max. Width

12.7 mm (1/2")

0.51 mm (25#)

1.5 m (4.9')

15.9 mm (5/8")

0.62 mm (23#)

3 m (9.8')

25.4 mm (1")

0.91 mm (20#)

3 m (9.8')

25.4 mm (1")

0.81 mm (21#)

3 m (9.8')

30.5 mm (1.2")

1.01 mm (19#)

3 m (9.8')

30.5 mm (1.2")

0.91 mm (20#)

3 m (9.8')



Woven Wire Mesh Feature:



  •

    Data Shows Benefits

  • SGR: 15% increase

  • Predator attacks: down to < 0.1%

  • Labor hours/tonne: 79% reduction

  • On-site energy use: 15% reduction

  • Mortality: less than 4%

  • FCR: 15% improvement

  • Feed use: 10% reduction

  • Antibiotics: 31% reduction

Woven Wire Mesh Application:

  • The copper alloy aquaculture mesh can be used in different environments.

    • Surface water.

    • Submersible marine.

    • Coastal waters.

    • Offshore sites.

    • Fresh water.

    • Sea water.
