Product Details:
|
| Packing: | In Rolls, In Cartons, In Pallets, Etc. | Material: | Fiberglass |
|---|---|---|---|
| Weaving Type: | Plain Weave | Color: | Green |
| Tensile Strength: | 300N | Application: | Building |
| Length: | 50m | MOQ: | 200m2 |
| High Light: | 0.05m width fireproof fiberglass cloth,reinforcement fireproof fiberglass cloth,2.5m width fiberglass wire mesh |
||

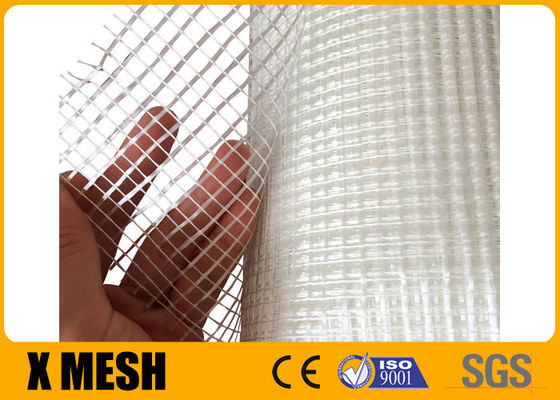

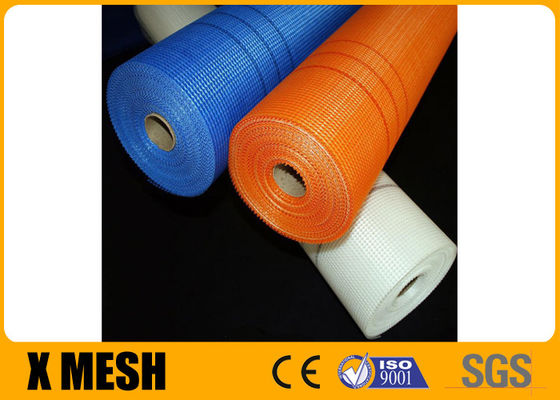

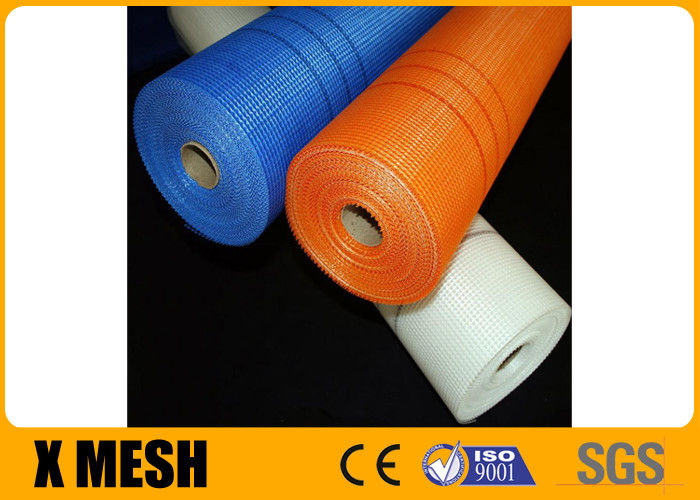

Fiberglass Mesh is mainly composed of C or E glass fiber yarn. Its main ingredient is silicate, which has great chemical stability. A special weaving technique, along with coating antalkali and reinforcing agents, is used to construct the mesh, which is then treated with high temperature heat finishing.
Its superior combination of heat resistance, weatherproof and abrasion resistance makes it an ideal engineering material in construction and decoration.
Alkali-resistant, acid-resistant, waterproof, and resistant to other chemicals' corrosion, resin bonding is strong and it is soluble in styrene. Additionally, with excellent dimensional stability, stiffness, smoothness, and positional property, this material is difficult to shrink and deform. The impact resistance is also quite good, making it impossible to tear. Not to mention, it has good fire resistant, thermal insulation, sound insulation, and other insulation properties.
| SPE | Weight(g/m2) | Roll diameter | CBM(square meters) | 20GP | 40GP | 40HC |
|---|---|---|---|---|---|---|
| 4x4and5x5 | 160 | 17cm | 50,000 | 100,000 | 115,000 | |
| 4x4and5x5 | 145 | 16.5cm | 52,000 | 105,000 | 125,000 | |
| 4x4and5x5 | 130 | 16cm | 55,000 | 115,000 | 130,000 | |
| 4x4and5x5 | 110 | 15cm | 60,000 | 125,000 | 150,000 | |
| 4x4and5x5 | 100 | 15cm | 60,000 | 125,000 | 150,000 | |
| 4x4and5x5 | 80 | 14cm | 70,000 | 145,000 | 170,000 | |
| 4x4and5x5 | 60 | 13.5cm | 75,000 | 155,000 | 185,000 |
1) wall reinforcing material (such as fiberglass wall mesh, GRC wall panel, EPS internal wall insulation board, gypsum board, etc.
2) enhance cement products (such as Roman Columns, flue, etc.).
3) granite, Mosaic net, marble back net.
4) waterproof rolling material cloth and asphalt roofing waterproof.
5) strengthen the skeleton material of plastic and rubber products.
6) fire prevention board.
7) grinding wheel base cloth.
8) earthwork grille for road surface.
9) building and seaming belts and so on.
Construction wire mesh is generally packaged and shipped in bundles. Each bundle of mesh is secured with strong metal bands to ensure that the product is not damaged during transit. The bundles of mesh are placed on large skids or pallets for easy handling and loading onto trucks. Once the product is loaded onto the truck, the skids and pallets are removed and the mesh is secured onto the truck with chains and straps.
