Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile

Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile
Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile

Large Image :  Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Barbed Wire-005
Payment & Shipping Terms:
Minimum Order Quantity: 500Coil
Price: USD15-85/Coil

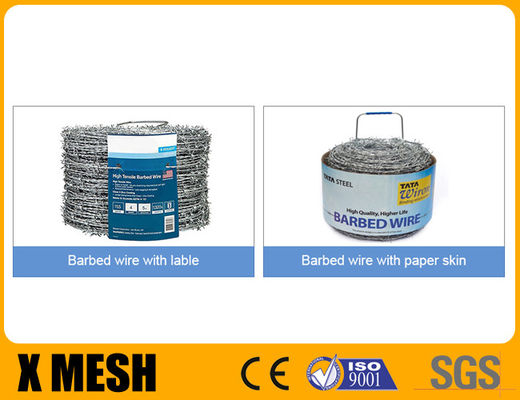

Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000Coils/week

Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile

Description
Product Name: Barbed Wire Surface Treatment: Hot Galvanized
Wire Diameter: 14 Gauge Color: Silveer
Series: Double Strand Barb Length: 20mm

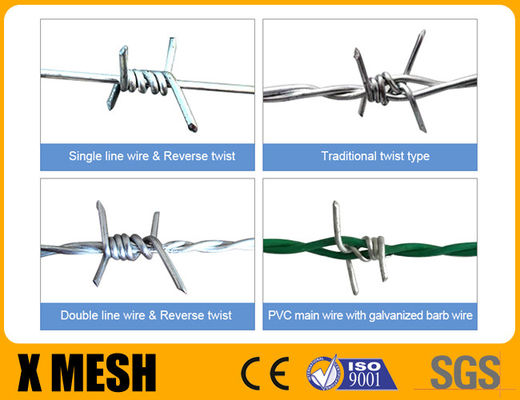

Barb Spacing: 100mm Twist Type: Reverse Twist Type
Tensile Strength: 1000-1200MPa Packing: Coil Packing Or Pallet Packing
High Light:

High Tensile Barbed Wire

,

100m long coil Barbed Wire

,

Hot Galvanized Barbed Wire

Reverse Twist Hot Galvanized 14 Gauge Barbed Wire with 100m long coil High Tensile





Barbed Wire Introduction:

double twist barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire. Double Twist Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Product Name

Barbed Wire

Surface Treatment

Hot Galvanized

Wire Diameter

14 Gauge

Color

Silveer

Series

Double Strand

Barb Length

20mm

Barb Spacing

100mm

Twist Type

Reverse Twist Type

Tensile Strength

1000-1200MPa

Packing

Coil Packing or Pallet Packing



Barbed Wire Specifications:

The specification of barbed wire for choose:

Gauge of
Strand and Barb in B.W.G.

Approximate Length per Kilo in Meter

Barbs Spacing 3"

Barbs Spacing 4"

Barbs Spacing 5"

Barbs Spacing 6"

12x12

6.0617

6.7590

7.2700

7.6376

12x14

7.3335

7.9051

8.3015

8.5741

12-1/2x12-1/2

6.9223

7.7190

8.3022

8.7221

12-1/2x14

8.1096

8.814

9.2242

9.5620

13x13

7.9808

8.899

9.5721

10.0553

13x14

8.8448

9.6899

10.2923

10.7146

13-1/2x14

9.6079

10.6134

11.4705

11.8553

14x14

10.4569

11.6590

12.5423

13.1752

14-1/2x14-1/2

11.9875

13.3671

14.3781

15.1034

15x15

13.8927

15.4942

16.6666

17.5070

15-1/2x15-1/2

15.3491

17.1144

18.4060

19.3386

We offer barbed wire with a variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Wire offered by us. However most commonly used color is green.


PVC
barbed wire

Wire Diameter

Barbs' distance

Barb length

Before coating

After coating



7.5cm - 15cm



1.5cm - 3cm

1.0mm - 3.5mm

1.4mm - 4.0mm

Bwg11 - Bwg20

Bwg8 - Bwg17

Swg11 - Swg20

Swg8 - Swg17

Other sizes can be made as request



Barbed Wire Feature:

1) Sharp edge frightens intruders and thieves.
2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
3) Anti-acid and alkali.
4) Harsh environment resistance.
5) Corrosion and rust resistance.
6) Available to combine with other fences for high level security barrier.
7) Convenient installation
8) Easy to maintain.
9) Durable and long service life.



Barbed Wire Application:

Currently, Barbed Wire been widely used by many countries in field, prisons, detention houses, government buildings and other national security facilities,not onlynational security applications, but also for cottage and society fence, and other ,as follow:

1.heavy land
2.prisons
3.government agencies
4.banks
5.residential community walls
6.private houses
7.villa walls, doors and windows
8.highways, railway guardrails
9.borders

Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile 0



Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile 1



Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile 2



Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile 3



Reverse Twist Hot Galvanized 14 Gauge Barbed Wire With 100m Long Coil High Tensile 4
