Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields

Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields
Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields

Large Image :  Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Concertina Wire-005
Payment & Shipping Terms:
Minimum Order Quantity: 500Coil
Price: USD20.50-USD35.5/Coil
Packaging Details: Wrapped with carton and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500tons/month

Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields

Description
Product Name: Razor Barbed Wire Material: Hot Galvanized Steel
Type: BTO-10 12 18 22 28 30 Or CBT-60 65 Outside Diameter: 700mm
Wire Diamter: 2-2.5mm Blade Thickness: 0.3-0.6mm
Clips: 3 Per Circle NO. Of Loops: 56
Standard Length: 15m Per Coil Packing: Weave Bags Packing Or Pallet Packing
High Light:

2.5mm Concertina Razor Barbed Wire

,

Security Fields Concertina Razor Barbed Wire

,

2.5 mm concertina razor wire

Concertina Razor Barbed Wire with 2.5mm wire and 0.5mm blade thickness for Security Fields





Razor Barbed Wire Introduction:

When you have to take the security seriously, Razor Wire is the best choice. Less cost and higher efficiency made it widely used in high security applications. Razor wire has a central strand of high tensile strengthsteel wire, and a steel tape punched into sharp barbs. The multiple blades of the razor wire are designed to inflict serious injury on any vandal, robber or saboteur, and therefore it has a strong psychological deterrent effect.

  • Flexible Configuration: Concertina wire can be deployed in various configurations depending on the specific security requirements and terrain conditions. It can be stretched horizontally between support posts, coiled on the ground as a barrier, or affixed to existing fences or walls.

  • Installation Methods: Installation of concertina wire often involves using specialized equipment or tools to handle the coils safely and securely. It may be affixed to fencing posts, concertina wire brackets, or concertina wire barriers to create an effective perimeter barrier.



Name

Razor Barbed Wire

Material

Hot Galvanized Steel

Type

BTO-10 12 18 22 28 30 or CBT-60 65

Outside Diameter

700mm

Wire Diamter

2-2.5mm

Blade Thickness

0.3-0.6mm

Clips

3 per circle

NO. of Loops

56

Standard Length

15m per coil

Packing

Weave Bags Packing or Pallet packing

Razor Barbed Wire Specification:

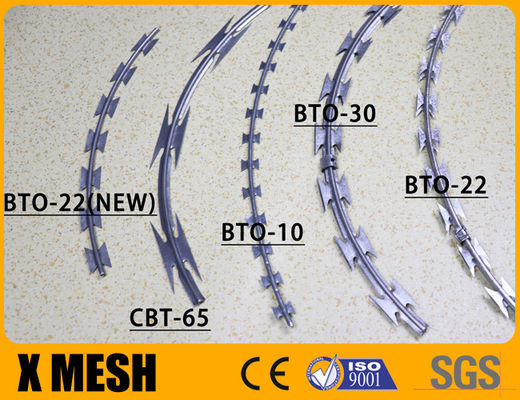

Main Types of Razor Wire:

Model

Thickness

Wire Dia

Barb Length

Barbed Width


Barb Spacing

BTO-10

0.5 ± 0.05 mm

2.5 ± 0.1mm

10 ± 1mm

13 ± 1mm

26 ± 1mm

BTO-12

0.5 ± 0.05 mm

2.5 ± 0.1mm

12 ± 1mm

15 ± 1mm

26 ± 1mm

BTO-18

0.5 ± 0.05 mm

2.5 ± 0.1mm

18 ± 1mm

15 ± 1mm

34 ± 1mm

BTO-22

0.5 ± 0.05 mm

2.5 ± 0.1mm

22 ± 1mm

15 ± 1mm

34 ± 1mm

BTO-28

0.5 ± 0.05 mm

2.5 ± 0.1mm

28 ± 1mm

15 ± 1mm

53 ± 1mm

BTO-30

0.5 ± 0.05 mm

2.5 ± 0.1mm

30 ± 1mm

21 ± 1mm

54 ± 1mm

CBT-60

0.6 ± 0.05 mm

2.5 ± 0.1mm

60 ± 2mm

32 ± 1mm

102 ± 1mm

CBT-65

0.6 ± 0.05 mm

2.5 ± 0.1mm

65 ± 2mm

21 ± 1mm

102 ± 1mm


We can also design and make the corresponding machines and equipments to manufacture your private customized razor wire types.



Common Specifications of Razor Wire:

Outside Diameter

No. of Loops

The Utmost Effective Length

Type

Notes

450 mm

33

7 - 8 M

CBT - 60.65

Single coil

500 mm

56

12 - 13 M

CBT - 60.65

Single coil

700 mm

56

13 - 14 M

CBT - 60.65

Single coil

960 mm

56

14 - 15 M

CBT - 60.65

Single coil

450 mm

56

8 - 9 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

500 mm

56

9 - 10 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

600 mm

56

10 - 11 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

600 mm

56

8 - 10 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

700 mm

56

10 - 12 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

800 mm

56

11 - 13 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

900 mm

56

12 - 14 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

960 mm

56

13 - 15 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

980 mm

56

14 - 16 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type


We can manufacture more specifications of razor wire products according to the actual needs of customers.



Razor Barbed Wire Feature:

  • Safety and Regulations:

  • Safety Considerations: Concertina wire poses significant safety risks due to its sharp barbs and potential for causing injury. Proper safety protocols and precautions should be followed during handling, installation, and maintenance to minimize the risk of accidents or injuries.

  • Regulatory Compliance: Depending on local regulations and laws, there may be restrictions or requirements governing the use of concertina wire, particularly in urban areas or densely populated regions. Compliance with relevant safety standards and zoning ordinances is essential to ensure legal and responsible deployment.

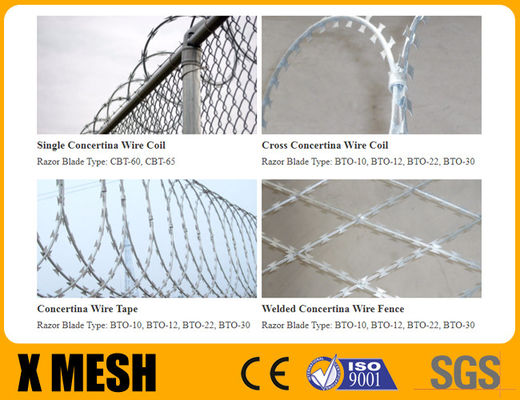

Razor Barbed Wire Application:

  • Razor barbed wire is widely used by many countries in military field, prisons, detention houses, government buildings
    and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class
    fencing wire for not only military and national security applications, but also for cottage and society fence, and other
    private buildings.

Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields 0



Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields 1



Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields 2



Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields 3

Concertina Razor Barbed Wire With 2.5mm Wire And 0.5mm Blade Thickness For Security Fields 4
