BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields

BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields
BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields

Large Image :  BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Concertina Wire-002
Payment & Shipping Terms:
Minimum Order Quantity: 500Coil
Price: USD20.50-USD35.5/Coil
Packaging Details: Wrapped with carton and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500tons/month

BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields

Description
Product Name: Razor Wire Material: Hot Galvanized Steel
Blade Thickness: 0.5mm Wire Dia.: 2.5mm
Blade Length: 10mm Blade Width: 13mm
Blade Spacing: 26mm Tensile Strength: 800MPa
Application: For Military Fields Packing: Weave Bags Packing Or Pallet Packing
High Light:

High Grade Security Razor Wire

,

Military Fields Razor Wire

,

Hot Galvanized Razor Wire

BTO 10 Type Razor Wire with Hot Galvanized High Grade Security for Military Fields

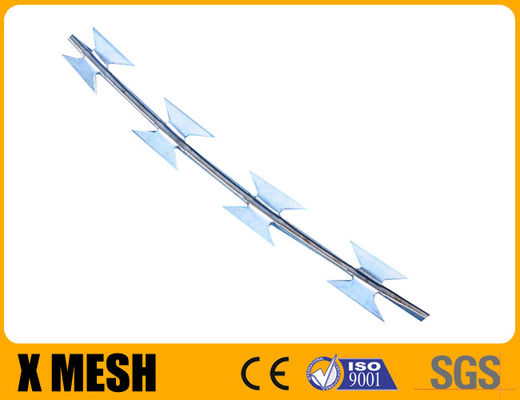

Razor Wire Introduction:

We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.





Name

Razor Wire

Material

Hot Galvanized Steel

Blade Thickness

0.5mm

Wire Dia.

2.5mm

Blade Length

10mm

Blade Width

13mm

Blade Spacing

26mm

Tensile Strength

800MPa

Application

for Military Fields

Packing

Weave bags Packing or Pallet Packing

Razor Wire Specification:



Reference number

Thickness

Wire Dia

Barb length

Barb width

Barb spacing

BTO-10

0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

0.5±0.05

2.5

28

15

45±1

BTO-30

0.5±0.05

2.5

30

18

45±1

CBT-60

0.5±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65

0.5±0.05

2.5±0.1

65±2

21±1

100±2





Specification of concertina razor wire

Outside diameter

No.of loops

Standard length per coil

Type

Notes

450mm

33

7-8M

CBT-60.65

Single coil

500mm

56

12-13m

CBT-60.65

Single coil

700mm

56

13-14m

CBT-60.65

Single coil

960mm

56

14-15m

CBT-60.65

Single coil

450mm

56

8-9m(3 clips)

CBT-10.10.18.22.28.30

Cross type

500mm

56

9-10m(3 clips)

CBT-10.10.18.22.28.30

Cross type

600mm

56

10-11m(3 clips)

CBT-10.10.18.22.28.30

Cross type

600mm

56

8-10m(5clips)

CBT-10.10.18.22.28.30

Cross type

700mm

56

10-12m(5 clips)

CBT-10.10.18.22.28.30

Cross type

800mm

56

11-13m(5 clips)

CBT-10.10.18.22.28.30

Cross type

900mm

56

12-14m(5 clips)

CBT-10.10.18.22.28.30

Cross type

960mm

56

13-15m(5clips)

CBT-10.10.18.22.28.30

Cross type

980mm

56

14-16m(5 clips)

CBT-10.10.18.22.28.30

Cross type



Razor Wire Feature:



  • Coiled Design: Concertina wire is formed into tight coils or spirals, which allow it to be easily transported, deployed, and installed as needed.

  • Sharp Barbs: The wire features sharp, pointed barbs or blades positioned at regular intervals along its length. These barbs are designed to inflict significant injury or deter individuals from attempting to breach the barrier.

  • Materials: Concertina wire is typically made of high-tensile steel wire, which provides durability and resistance to corrosion. Some variants may feature galvanized or stainless steel construction to enhance longevity and weather resistance.



Razor Wire Application:

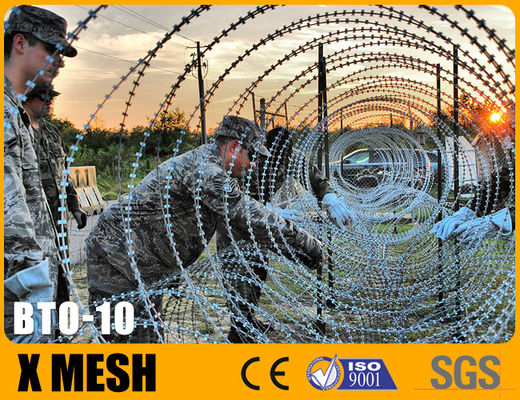

  • Military Use: Concertina wire has been widely used by military forces around the world for perimeter security, defensive fortifications, and obstacle emplacements. It is employed to deter enemy incursions, protect military installations, and secure strategic positions.

  • Border Security: Governments and border authorities use concertina wire to fortify border barriers, deter illegal crossings, and enhance border security. It is often deployed along borders, checkpoints, and sensitive areas to prevent unauthorized entry.

  • Prison and Correctional Facilities: Concertina wire is utilized in prisons, correctional facilities, and detention centers to create secure perimeters and prevent escapes. It is installed atop fences, walls, and barriers to discourage inmates from attempting to breach the security perimeter.

  • Industrial and Commercial Security: Concertina wire is employed in industrial sites, warehouses, and commercial facilities to protect valuable assets, equipment, and property from unauthorized access, theft, and vandalism.

BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields 0



BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields 1



BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields 2



BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields 3



BTO 10 Type Razor Wire With Hot Galvanized High Grade Security For Military Fields 4
