Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway

Certification
China Anping Yuanfengrun Mesh Products Co., Ltd. certification
I'm Online Chat Now

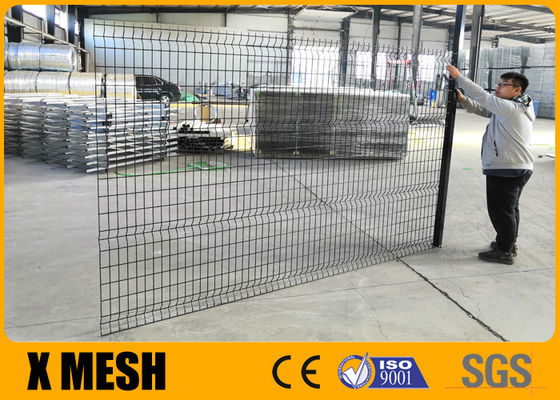

Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway

Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway
Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway

Large Image :  Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-063
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: USD25.00-58.35/Set
Packaging Details: Plastic Film+Metal/Wooden pallet
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway

Description
Powder Material: Dupont Series: Powder Coated
Hole Size: 50x200mm Application: For Highway
Fence Width: 2000mm Standard: BS EN 13438:2005
Color: Black Type: Fencing
Wire Diameter: 5mm Height: 2.4m
High Light:

powder coated Metal Mesh Fencing

,

powder coated metal mesh 50x200mm Hole

,

Highway powder coated metal mesh

50 x 200mm Hole Size Dupont Powder Coated Highway Metal Mesh Fencing





Metal Mesh Fencing Description:



Metal Mesh Fencing is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.



Metal Mesh Fencing Benefits:



  • Strong and reliable security

  • Attractive appearance

  • Vandal resistant

  • Quick and simple installation

  • Cost effective

  • Low maintenance


Metal Mesh Fencing Specification:







Mesh Panel

Wire Thickness

Panel Width

Number of Folds

Height

Spacing between horizontal wire: 100mm, 150mm, 200mm

3.0mm
or
3.5mm
or
4.0mm
or
4.50mm
or
5.00mm

2.0m or 2.50m
or 2.9m

2

830mm

2

1030mm

2

1230mm

The spacing between vertical wire:
50mm, 55mm

2

1430mm

3

1630mm

3

1830mm

Reforced folds: 100mm, 200mm

4

2030mm

4

2230mm

4

2430mm



Specification of Square post

Size

40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm

Thickness

1.2mm, 1. 5mm, 2.0mm.

Height

1800mm,2100mm,2300mm,2500mm or as your request

Surface Treatmenq

Hot -dipped galvanized, PVC, hot galva nized+PVC

clips

Plastic clip, metal clip





Metal Mesh Fencing Details:



Using high quality of the steel as raw material. The welded wire fence panel, after galvanization, powder/PVC coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100 - 120 microns usually. The choose wire diameters are 3.0 - 7.0mm. It obtains high strong powders to resist the construction.



Metal Mesh Fencing Applications:



  •

    Metal Mesh Fencing is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
    Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.

  •

Metal Mesh Fencing Packaging and shipping:


1.Fence panel: plastic film / wooden case + metal/wooden pallet.2.Fence post: plastic bag + metal/wooden pallet (with rainhat
installed).
3.Fence accessories: plastic bag + carton box (clips & screws).

Accessories come in different types and materials and can be selected as needed.No special attachment for piping installation, use
propulsion device, easy to grip, fast, reduce cost.



Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway 0



Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway 1



Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway 2



Powder Coated Metal Mesh Fencing 50x200mm Hole For Highway 3
