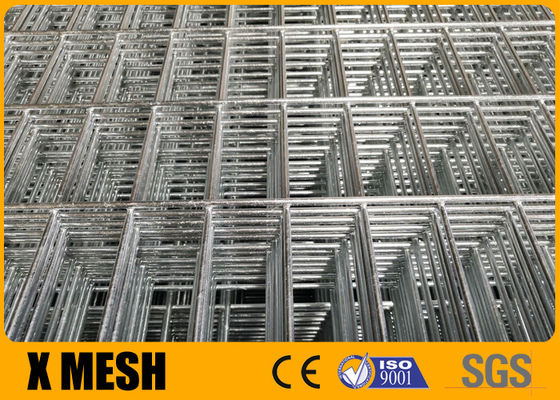

ISO9001 1.2m Galvanised Steel Fencing Systems V Shaped ISO9001 1.2m Galvanised Steel Fencing Systems V Shaped

Large Image :  ISO9001 1.2m Galvanised Steel Fencing Systems V Shaped

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-069
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: USD25.00-58.35/Set
Packaging Details: Plastic Film+Metal/Wooden pallet
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

ISO9001 1.2m Galvanised Steel Fencing Systems V Shaped

Description
Folds NO.: 3 - 4 Folds Material: Pre - Galvanized Steel
Height: 1.2m Standard: BS EN 13438:2005
Fence Width: 2m Application: For Airport
Type: V Shaped Beams Mesh Size: 50*200mm
RAL: 9005 Color: Black
High Light:

galvanised steel fencing systems

,

1.2m galvanised steel fencing systems

,

steel wire fence V Shaped

3 - 4 folds Pre - Galvanized Steel 1.2m High Galfan steel fencing systems





steel fencing systems Description:







The steel fencing systems are fully welded and 100% hot dip galvanized offering great strength, protection against corrosion and an increadibly long product life.

QIJIE FENCING is a professional fence customizing factory with experience of more than 20 years. We provide high quality fence
with affordable price, as well as provide trade assurance to ensure that your order be no risk.





steel fencing systems Introduction:



Using high quality of the steel as raw material. The welded wire fence panel, after galvanization, powder/PVC coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100 - 120 microns usually. The choose wire diameters are 3.0 - 7.0mm. It obtains high strong powders to resist the construction.

Fence Panels:
1>it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>it has 4 metal corners to keep the pallet more strong.
3>it has metal plate under the plastic bandage to reduce the apressure of fence panels.
4>it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
Fence Post:
Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then metal pallet.
Accessories:
Clips and screws are packed by sets, plastic film + carton box.


steel fencing systems Specification:



Specification of steel fencing systems

Mesh Opening

Wire Thickness

Panel Width

Panel Height

Number of Folds

Post Type

50x100mm
50x150mm
50x200mm
55x200mm
75x150mm
etc.

3.0mm
or
3.5mm
or
4.0mm
or
4.50mm
or
5.00mm

2.0m
or
2.50m
or
2.9m

630mm

2

Round Post

48x1.5/2.0mm
60x1.5/2.0mm



Square Post(SHS)

50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm


Rectangular Post(RHS)

40x60x1.5/2.0mm
40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm







830mm

2













1030mm

2













1230mm

2













1430mm

2













1530mm

3













1630mm

3













1730mm

3













1830mm

3













1930mm

3













2030mm

4













2230mm

4













2430mm

4







Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated

Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.

Note: The fence can be customized according to your required if above specification is not satisfied with you.



Mesh Panel

Wire Thickness

Panel Width

Number of Folds

Height

Spacing between horizontal wire: 100mm, 150mm, 200mm

3.0mm
or
3.5mm
or
4.0mm
or
4.50mm
or
5.00mm

2.0m or 2.50m
or 2.9m

2

830mm

2

1030mm

2

1230mm

The spacing between vertical wire:
50mm, 55mm

2

1430mm

3

1630mm

3

1830mm

Reforced folds: 100mm, 200mm

4

2030mm

4

2230mm

4

2430mm



Specification of Square post

Size

40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm

Thickness

1.2mm, 1. 5mm, 2.0mm.

Height

1800mm,2100mm,2300mm,2500mm or as your request

Surface Treatmenq

Hot -dipped galvanized, PVC, hot galva nized+PVC

clips

Plastic clip, metal clip





steel fencing systems Process:



1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated



steel fencing systems Applications:



steel fencing systems is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.





















steel fencing systems Packaging and shipping:


1.Fence panel: plastic film / wooden case + metal/wooden pallet.2.Fence post: plastic bag + metal/wooden pallet (with rainhat
installed).
3.Fence accessories: plastic bag + carton box (clips & screws).

Accessories come in different types and materials and can be selected as needed.No special attachment for piping installation, use
propulsion device, easy to grip, fast, reduce cost.
