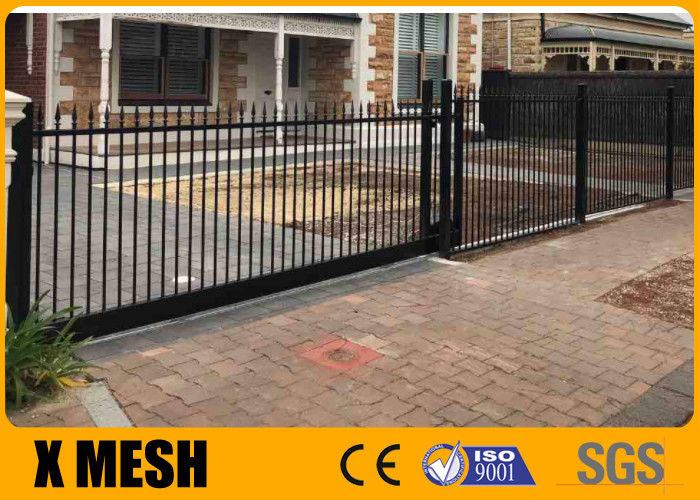

Protecting 60'' Ornamental 3 Rail Aluminum Fence ASTM F2589

 protecting embassies 60 Inches High 3 Rail ASTM F2589 Standard ornamental aluminum fence

ornamental aluminum fence Description:

Heavy Industrial Grade Aluminum Fence

Our Qijie heavy industrial grade aluminum fencing is constructed of 1-5/8"x 1-5/8" rails with an enclosed bottom and has no exposed screws, 1"x 1" pickets, and uses 3"x 3" or 4"x 4" post.

The heavy industrial grade aluminum fences are available in six standard styles. Elite heavy industrial grade fencing is available in either Black or Quaker Bronze. The heavy industrial grade fences are available in heights of 4’, 5’, 6’, 7’, 8’, and 10’.

ornamental aluminum fence Specification:

• 8’ Length ATF Panels

  5/8” SQ x 18 ga Pickets

  15/16” W x 1-1/4” H x 14 ga Rails

Screws: 410 Stainless Steel corrosion resistant. The heads are coated with zinc and yellow chromate, then painted to match the color of the fence.
Panels: Fully assembled 6 feet in length plus or minus one inch.

ornamental aluminum fence Details:

Pickets: Residential 5/8'' square x .050 wall; Commercial 3/4" square x .055 wall

Spacing between Pickets: Residential standard 3-13/16'' and optional 1-5/8”; Commercial standard 3-5/8” and optional 1-1/2”

Fasteners: Stainless steel

Horizontal Rails: Residential 1-1/8'' x 1'' with .080 side walls and .062 top walls; Commercial 1-1/4” x 1-3/8” with .088'' side walls and .065'' top walls

Posts: Residential 2'' square x .060, .080, or .125 wall; 2-1/2” square x .100 wall; Commercial 2'' square x .080 or .125 wall; 2-1/2” square x .100 wall ; and 3” square x .125 wall. All posts include standard caps.

Alloy: High-strength Ultrum™ 6005-T5 alloy, min. strength 35,000 PSI

Finish: Powercoat™. When applied, Powercoat™ finish is twice the thickness and hardness of a typical acrylic, baked enamel or “wet paint” finish, making it more durable, fade-resistant and scratch-resistant than other coatings.

ornamental aluminum fence Features:

• Fully Welded Panel w/ Profusion Technology

• E-Coat Surface Protection

• GSA Schedule

• Easy Installation

• Fully rakeable panels

• IBC Compliant Options Available

• Meets Buy American Act

• Sustainable Materials

• 20 Year Limited Warranty

•

ornamental aluminum fence COLORS:

Black, Satin Black, Bronze, Satin Bronze, Beige, Satin Khaki, White, Satin White, Forest Green

ornamental aluminum fence Application:

We supply residential, commercial and municipal galvanized steel fence as well as steel security gates for state and federal projects such as: highway, public parks, schools, universities, transit, government buildings, airports, parking lots and high security facilities. Our galvanized prefabricated ornamental steel fence and railing panels are prefinished with superior powder coated finishes made to stand the test of time.
