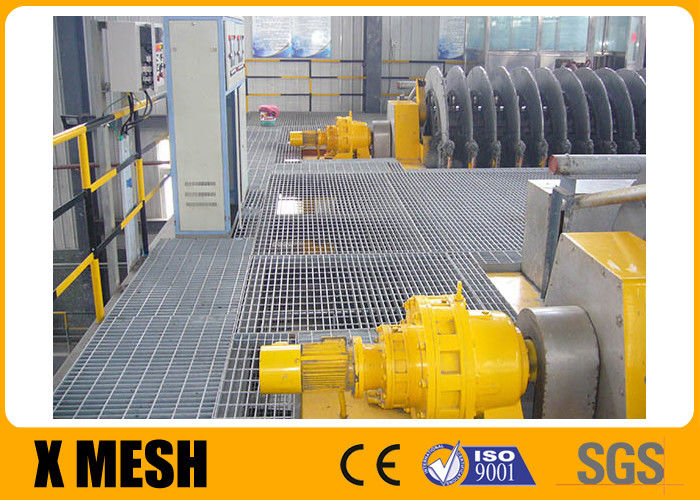

Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant

Certification
China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant

Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant
Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant

Large Image :  Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-0153
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD20.50-50.50/pc
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8500pcs/week

Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant

Description
Application: Cement Plant Bearing Bar Pitch: 30mm
Type: Plain Surface Length: 2000mm
Color: Silver Standard: AS1657 - 1992
Series: Hot Galvanized Bearing Bar: 25mm X 3mm
Cross Bar: 6mm Material: A36 Steel
High Light:

plain bar Welded Steel Grating

,

plain bar grating Hot Galvanized

,

plain bar grating 2000mm

AS1657 - 1992 Standard Bearing Bar Pitch 30mm Plain Welded Steel Grating





Welded Steel Grating Introduction:



Steel Grating Specification

Steel grating is commonly made of flat steel panel and supporting bars welded together with setting spacings. It goes through cutting, opening, edging and other processes. The popular vertical bar grating spacing is 30mm, 40mm or 60mm, horizontal bar grating is 50mm or 100mm normally. Details information please refer to the specification List below.



Surface Treatment: hot-dipped galvanized or electro galvanized mild steel.



Stainless Steel Grating

Stainless steel bar grating is a choice for corrosive environments such as chemical, food and hydro processing areas. It is available in welded and press locked as well as in many bearing bar sizes.



Materials: The most common material is Type 304 (SUS304), however, Type 316 (SUS316) or Type 316L (SUS316L) is also available. 304 stainless steel is the most popular type contains both chromium and nickel to provide excellent balance resistance and workability. 316 stainless steel is better corrosion, pitting resistance and higher strength at elevated temperatures than 304. 316L is extra low carbon variation of 316 to avoid carbide precipitation due to welding.



Aluminum Grating

aluminum grating is designed to be a high-strength, low-weight product that uses an I-bar or rectangular bearing bar with cross rods hydraulically swaged under high pressure. Thus, giving you a rigid, virtually maintenance-free flooring product.



Similar to steel grating, aluminum grating can be pressure locked as an alternative to swage locked. This application process also allows the customer to choose a close mesh grate where certain special needs are to be met.



Open Mesh Grating

The open mesh steel grating is a flat panel with a light structure firmly welded together. It is widely used for industrial ladders, decking safety, ventilation ceilings and floors, platform and stair tread protection panels. The open spacing design instead of solid metals allows good ventilation, and easy flow of lighting and heat. The standard sheet size is 1m x 6m standard type (special size and American standard size are also customizable).



Mostly Used Specifications of Steel Mesh Gratings from our customers:

1) Bearing Bar (Load Bar) Specifications (mm): The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4 , 70 x 7 x 4, 75 x 7 x 4, etc.



2) Bearing Bar Pitch (center to center): 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available.



Quality Standard Qindelin follows in production:



Steel Grating Standard: China YB/T4001-1998

America ANSI/NAAMM (MBG531-88)

Britain BS4592-1987

Australia AS1657-1992

Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)

Hot Dip Galvanizing Standard: China GB/T13912-92 / ASTM (A123) / BS729



Welded Steel Grating Specification:



Series No.

Verticle Bar Spacing

Horizontal Bar Spacing

Specification of Supporting Flat Steel (Width X Thickness)







20¡Á3

25¡Á3

32¡Á3

40¡Á3

20¡Á5

25¡Á5

1

30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100





50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

2

40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100





50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

3

60

50

-

G253/60/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50

Series No.

Verticle Bar Spacing

Horizontal Bar Spacing

Specification of Supporting Flat Steel (Width X Thickness)







32¡Á5

40¡Á5

45¡Á5

50¡Á5

55¡Á5

60¡Á5

1

30

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100





50

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

2

40

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100





50

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

3

60

50

G325/60/50

G405/60/50

G455/60/50

G505/60/50

G555/60/50

G605/60/50



Specification of Common Standard Steel Bar Grating

Series No

Vertical
Bar
Spacing

Horizontal
Bar
Spacing

Specification of Supporting Flat Steel
Width X Thickness
(mm) (mm)

20× 3

25× 3

32× 3

40× 3

20× 5

25× 5

1

30

100

G203/ 30/ 100

G253/ 30/ 100

G323/ 30/ 100

G403/ 30/ 100

G205/ 30/ 100

G255/ 30/ 100

50

G203/ 30/ 50

G253/ 30/ 50

G323/ 30/ 50

G403/ 30/ 50

G205/ 30/ 50

G255/ 30/ 50

2

40

100

G203/ 40/ 100

G253/ 40/ 100

G323/ 40/ 100

G403/ 40/ 100

G205/ 40/ 100

G255/ 40/ 100

50

G203/ 40/ 50

G253/ 40/ 50

G323/ 40/ 50

G403/ 40/ 50

G205/ 40/ 50

G255/ 40/ 50

3

60

50

-

G253/ 60/ 50

G323/ 60/ 50

G403/ 60/ 50

G205/ 60/ 50

G255/ 60/ 50



32 × 5

40× 5

45× 5

50× 5

55× 5

60× 5

4

30

100

G325/ 30/ 100

G405/ 30/ 100

G455/ 30/ 100

G500/30/100

G555/ 30/ 100

G605/ 30/ 100

50

G325/ 30/ 50

G405/ 30/ 50

G455/ 30/ 50

G500/ 30/ 50

G555/ 30/ 50

G605/ 30/ 50

5

40

100

G325/ 40/ 100

G405/ 40/ 100

G455/ 40/ 100

G500/ 40/ 100

G555/ 40/ 100

G605/ 40/ 100

50

G325/ 40/ 50

G405/ 40/ 50

G455/ 40/ 50

G500/ 40/ 50

G555/ 40/ 50

G605/ 40/ 50

6

60

50

G325/ 60/ 50

G405/ 60/ 50

G455/ 60/ 50

G500/ 60/ 50

G555/ 60/ 50

G605/ 60/ 50


Welded Steel Grating Applications:



Uses: Stainless steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed:





  • Steel bar grating airfield landing mats

  • Steel bar grating airplane unloading ramps

  • Steel bar grating highway bridge decking

  • Steel bar grating sidewalk grates

  • Steel grating platforms

  • Steel bar grating vault covers

  • Steel bar grating ramps

  • Steel bar grating docks

  • Industrial flooring

  • Off-shore steel drilling rig platforms

  • Steel grating covered trenches





Welded Steel Grating Feature: ​



  • The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties.



Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant 0



Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant 1



Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant 2



Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant 3



Plain Bar Welded Steel Grating Hot Galvanized 2000mm For Cement Plant 4
