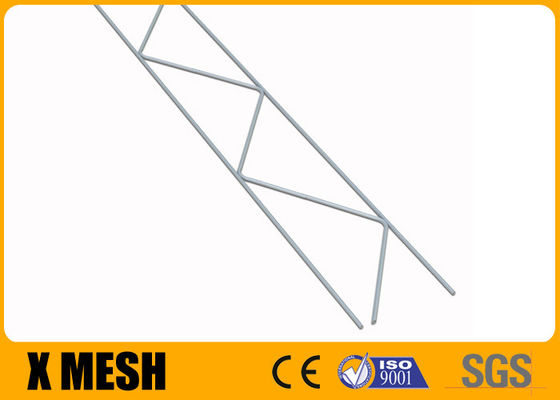

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951

Large Image : Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-0226

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD0.70-5.50/PC
Packaging Details:	Wrapped with plastic film and pallet packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	19850m2/week

Contact Now

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951

Description

Tensile Strength:	80,000 P.s.i.	Wire Diameter:	9#
Yield Point:	70,000 P.s.i.	Type:	Standard
Application:	Asphalt Guttering	Packing:	1000pcs/pallet
Color:	Silver	Feature:	Masonry Wall Reinforcing
Standard:	ASTM A951	Length:	3m
High Light:	asphalt guttering Construction Wire Mesh , wire mesh for concrete walls ASTM A951 , wire mesh for concrete walls 3m

asphalt guttering ASTM A951 Standard Masonry wall reinforcing Construction Wire Mesh

Construction Wire Mesh Introduction:

Qijie Ladder Mesh conforms to ASTM A951 standard specification for masonry joint reinforcement. Qijie Ladder Mesh is continuous lengths of joint reinforcement that are embedded into the horizontal mortar joints of masonry block walls. It is available in standard weight (9-Gauge x 9-Gauge) in mill and hot dip galvanized.Stainless steel 304/316

Masonry reinforcement mesh, Ladder Mesh Reinforcement
Block work wire mesh, block welded wire mesh, block ladder mesh

Block truss mesh

Masonry reinforcement mesh, Ladder Mesh Reinforcement

Block work wire mesh, block welded wire mesh, block ladder mesh

It is widely used in the building construction area, normally used in the wall reinforcement.

There are several kinds are available:
1. Welded after hot dipped galvanized
2. Welded after electro galvanized
3. Welded before electro galvanized
4. Welded before hot dipped galvanized

We can produce around 5000 pieces per day, with best quality zinc coating - around 400GSM for welded after hot dipped galvanized type.

Packing: Every 20 pieces per carton box, one 40 feet container can loading around 22, 000 pieces ( 1100 boxes), more photos about the products and the packing is Available.

Size details: Normally 3 meters long, the space distance is 40cm, and with different Width 5cm, 10cm, 15cm, 20cm, 25cm.

Packing:
20 pieces/carton box

MATERIAL : Iron wire & stainless steel wire 304/316
Qijie metal joint reinforcement products conform to:
ASTM A951 (Standard Specification for Steel Wire for Masonry
Joint Reinforcement)
Our products pass the testing of ASTM A951,We tested in USA .
Tensile Strength - 80,000 p.s.i. | Yield Point - 70,000 p.s.i. minimum
Zinc Coating:
Mill Galvanized coating: (0.1 oz/ft²)
Hot-Dip Galvanized after fabrication: (1.5 oz/ft²)
Wire Diameter:
9 gauge or 3/16”Ø
Side Rods and Cross Rods available in any combination of the above.
Cross Rods welded 16” O.C.
Block Size: Standard Sizes: 4” wall - 16“ wall.
Other widths available on special request.

Masonry Block Wire Ladder has the continuous lengths of joint reinforcement that are embedded into the horizontal mortar joints of masonry walls. Joint reinforcement has long proven to be necessary for superior performance of masonry wall construction.

Variety: Truss-Mesh Reinforcement
Ladder-Mesh Reinforcement

Available at: hot dipped galvanized, electro galvanized or stainless steel

The specification :
The widht : 50mm,100mm,150mm,200mm,250mm etc.

Construction Wire Mesh Standard Specification:

* 4” wall - 16” wall
* Other widths available on special request
* (S) Standard: 9 ga. side rods x 9 ga. cross rods
* (EH) Extra Heavy: 3/16” side rods x 9 ga. cross rods
* (SHD) Super Heavy Duty: 3/16” side rods x 3/16” cross rods

Tensile Strength - 80,000 psi
Yield Point - 70,000 psi

ITEMS #	Block width	Mesh width	Weight(KGS)	PACKING
QJM2	4''	2''	0.57	50PCS/BDL,20BDL/PALLET
QJM4	6''	4''	0.61	50PCS/BDL,20BDL/PALLET
QJM6	8''	6''	0.64	50PCS/BDL,20BDL/PALLET
QJM8	10''	8''	0.68	50PCS/BDL,20BDL/PALLET
QJM10	12''	10''	0.71	50PCS/BDL,20BDL/PALLET

Standard Length	Width	Finishes
10’(3.05m)	2”(50mm)	Uncoated Electro Galvanized Hot Dipped Galvanized After Fabrication Stainless Steel
	4”(100mm)
	6”(150mm)
	8”(200mm)
	10”(250mm)
All products conform to: ASTM A641 - (Electro galvanized ) ASTM A153 Class B2 - (Hot dipped after fabrication) ASTM A 82 - (Cold drawn steel wire) Tensile Strength:80,000 PSI;Yield Point:70,000 PSI minimum;Reduction of Area:30 %. ASTM A951-96 - (Masonry wall reinforcing) ASTM 580 Type 304 - (Stainless steel)

Truss Type Block Reinforcement Mesh Specification

Reference	Width (mm)	Thickness (mm)	Length (mm)	Material
TM 50 S	50	3/4/5	3000	Galvanised steel
TM 100 GS	100	3/4/5	3000	Galvanised Steel
TM 150 GS	150	3/4/5	3000	Galavanised Steel
TM 200 GS	200	3/4/5	3000	Galavanised steel
TM 50 SS	50	3/4/5	3000	Stainless steel
TM 100 SS	100	3/4/5	3000	Stainless steel
TM 150 SS	150	3/4/5	3000	Stainless steel
TM 200 SS	200	3/4/5	3000	Stainless Steel

Ladder Type Block Reinforcement Mesh Specification

Reference	Width (mm)	Thickness (mm)	Length (mm)	Material
LM 50 GS	50	3/4/5	3000	Galvanised steel
LM100 GS	100	3/4/5	3000	Galvanised steel
LM 150 GS	150	3/4/5	3000	Galvanised steel
LM 200 GS	200	3/4/5	3000	Galvanised Steel
LM 50 SS	50	3/4/5	3000	Stainless steel
LM 100 SS	100	3/4/5	3000	Stainless Steel
LM 150 SS	150	3/4/5	3000	Stainless steel
LM 200 SS	200	3/4/5	3000	Stainless Steel

Construction Wire Mesh Packing :

1. 50 pieces per bundle, 20 bundles per pallet. (North America market)

2. 25 pieces per bundle, 40 bundles per pallet. (Europe market)

Construction Wire Mesh Benifits:

Advantages Economy: The mode of truss is reasonable with low price and has an obvious advantage in this area; Can be designed as double-sides deck.

Convenient: Shorten the project construction time; Reduce temporaty support.

Security: Good performance of cracking resistance and fire resistance;

Reliability: good property to prevent earthquake.

Construction Wire Mesh Application:

Concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering and so on

Joint reinforcement has long proven to be necessary for superior

performance of masonry wall construction, as it offers the following benefits:

1. Reinforces a variety of masonry walls

2. Greatly reduces cracking that can arise from thermal stresses

3. Enhances resistance to water penetration, as cracks are controlled

4. Increases lateral flexural strength

5. Bonds masonry at intersecting walls and corners

6. Increases performance of masonry walls under various stresses

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951 0

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951 1

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951 2

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951 3

Asphalt Guttering Construction Wire Mesh For Concrete Walls 3m ASTM A951 4
