ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening

Certification
China Anping Yuanfengrun Mesh Products Co., Ltd. certification
I'm Online Chat Now

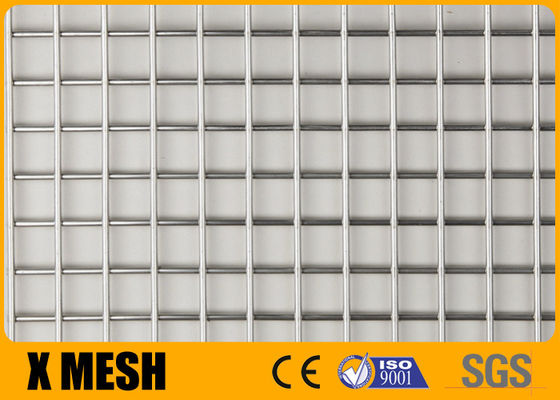

ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening

ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening
ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening

Large Image :  ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-0250
Payment & Shipping Terms:
Minimum Order Quantity: 50rolls
Price: USD3.50-8.95/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000rolls/week

ASTM A185 Galvanised Welded Mesh Reinforcement 50x50mm Opening

Description
Mesh Opening: 50mm X 50mm Application: Building & Construction
Series: GAW Material: Low Carbon Steel
Length: 3.0m Packing: Pallet
Width: 1.5m Standard: ASTM A185
Wire Diameter: 3mm Feature: Easy Assembled
High Light:

ASTM A185 Galvanised Welded Mesh

,

ASTM A185 welded mesh reinforcement

,

welded mesh reinforcement 50x50mm

ASTM A185 Standard Wire Diameter 3mm Mesh Opening 50mm x 50mm Galvanised Welded Mesh





Galvanised Welded Mesh Introduction:



Welded wire mesh is constructed with two orthogonal wires that are joined together at their intersections using a resistance welding process to form a grid. The line wires of the grid are guided through the welder using a pattern board.

Welded wire mesh consists of perpendicular wire strands that are welded at each intersection. This results in a solid construction that maintains its shape when stressed, with larger open areas than typical woven wire mesh. Because the individual wires are welded at the joints, thinner wires can be used over larger spaces while remaining strong and stable. Materials include carbon steel, galvanized steel and stainless wire mesh.



GAW (Galvanized After Welding) Welded Mesh

In this process, the mesh is hot-dipped galvanized after the wire is welded, coating all the weld intersections. GAW welded wire mesh performs well in damp environments and is used in applications such as ventilation screens, animal enclosures, and light duty industrial applications.

GBW (Galvanized Before Welding) Welded Mesh

In this process, the wire is coated prior to welding, leaving the welds uncoated. While GBW provides some protection against damp conditions, it is more prone to rust than GAW mesh. It is primarily used for indoor applications such as security screens and guards for machinery.



Welded Wire Mesh

Qijie Company is the leading industrial welded wire mesh supplier and manufacturer offering a full line of welded wire mesh products for a wide range of applications. Welded wire mesh is generally constructed in rolls or flat panels depending on the wire and opening size. Qijie’s welded wire mesh varieties include square and rectangular openings. Custom wire openings are available upon request. The intersections of the wire mesh are typically resistance-welded according to the alloy requirement. Weld set down (thickness of the welded intersection) and weld strength are determined by weld time, weld pressure, and weld temperature.

Galvanised Welded Mesh Specification:



Opening

Wire diameter

Inch

mm

BWG

mm

1" × 1"

25mmx25mm

14# - 11#

2.0mm - 3mm

2" × 1"

50mmx25mm

14# - 8#

2.0mm - 4mm

2" × 2"

50mmx50mm

14# - 8#

2.0mm - 4mm

3" × 2"

75mmx50mm

14# - 6#

2.0mm - 5mm

3" × 3"

75mmx75mm

14# - 6#

2.0mm - 5mm

4" × 2"

100mmx50mm

14# - 4#

2.0mm - 6mm

4" × 4"

100mmx100mm

14# - 4#

2.0mm - 6mm

5" × 5"

125mmx125mm

14# - 4#

2.0mm - 6mm

6" × 6"

150mmx150mm

14# - 4#

2.0mm - 6mm



Opening Mesh


Wire Diameter










Width
0.4-2 m

Length
5-50 m







Material:

*Electric Galvanized before welding *Electro Galvanized after welding
*Hot dipped Galvanized before welding
*Hot dipped Galvanized after welding

*Stainless steel

SUS 304, SUS 316, SUS 316L,etc.

In inch

In metric unit

1/4" x 1/4"

6.4 x 6.4mm

BWG24-22

3/8" x 3/8"

10.6x 10.6mm

BWG22-19

1/2" x 1/2"

12.7 x 12.7mm

BWG23-16

5/8" x 5/8"

16x 16mm

BWG21-18

3/4" x 3/4"

19.1 x 19.1mm

BWG21-16

1" x 1/2"

25.4x 12.7mm

BWG21-16

1-1/2" x 1-1/2"

38 x 38mm

BWG19-14

1" x 2"

25.4 x 50.8mm

BWG16-14

2" x 2"

50.8 x 50.8mm

BWG15-12

2” x 4"

50.8 x 101.6mm

BWG15-12

4” x 4"

101.6 x 101.6mm

BWG15-12

4” x 6"

101.6 x 152.4mm

BWG15-12

6” x 6"

152.4 x 152.4mm

BWG15-12

6” x 8"

152.4 x 203.2mm

BWG14-12





Code

Aperture (mm)

Diameter (mm)

Height (mm)

Length (mm)

Weight (kg)

Wire Dia. (mm)

ATREE

160 x 100

750

1760

2400

11.2

5



Galvanised Welded Mesh Feature:



• Easily workable
• Solid construction
• Extremely versatile
• Easy to install
• Lightweight
• Low resistance to wind loads
• Available in many styles and materials



Galvanised Welded Mesh Application:



  • Security cages

  • Security fencing

  • Metal Fencing

  • Dog fencing

  • Animal enclosures - such as Chicken Coops

  • Aviaries

  • Bird cages

  • Pet hutches

  • Cat fences

  • Pond covers or protection

  • Garden fencing

  • Agricultural

  • Archaeological

  • Building & Construction

  • Concrete Reinforcement

  • Farm & Garden

  • Temporary Fencing

  • Gabions / Stone Retention

  • General Industrial

  • Greenhouse

  • Landscaping

  • Particle Separation

  • Railing & Guardrail Infill Panels

  • Security & Prison

  • Solar Panels

  • Window Guards

  • Zoo Cages & Animal Enclosures

  •
