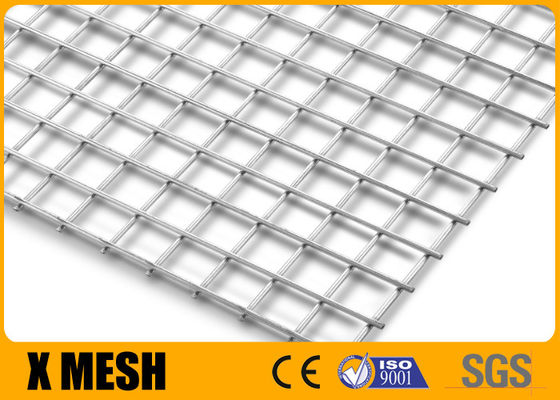

5"×5" Galvanised Welded Mesh Reinforcement ASTM A510

5"×5" Galvanised Welded Mesh Reinforcement ASTM A510
5"×5" Galvanised Welded Mesh Reinforcement ASTM A510 5"×5" Galvanised Welded Mesh Reinforcement ASTM A510

Large Image :  5"×5" Galvanised Welded Mesh Reinforcement ASTM A510

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-0254
Payment & Shipping Terms:
Minimum Order Quantity: 50rolls
Price: USD3.50-8.95/m2
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000rolls/week

5"×5" Galvanised Welded Mesh Reinforcement ASTM A510

Description
Standard: ASTM A510 Feature: Easy Assembled
Series: GAW Material: A36 Steel
Length: 6m Packing: Pallet
Wire Diameter: 5mm Application: Concrete Reinforcement
Width: 2m Mesh Size: 5" × 5"
High Light:

5"×5" Galvanised Welded Mesh

,

welded mesh reinforcement ASTM A510

,

5"×5" welded mesh reinforcement

5" × 5" Mesh Size ASTM A510 Standard Concrete Reinforcement Galvanised Welded Mesh





Galvanised Welded Mesh Introduction:



The finished welded wire mesh offer flat and uniform surface, firm structure, good integrity. The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.



GAW (Galvanized After Welding) Welded Mesh

In this process, the mesh is hot-dipped galvanized after the wire is welded, coating all the weld intersections. GAW welded wire mesh performs well in damp environments and is used in applications such as ventilation screens, animal enclosures, and light duty industrial applications.

GBW (Galvanized Before Welding) Welded Mesh

In this process, the wire is coated prior to welding, leaving the welds uncoated. While GBW provides some protection against damp conditions, it is more prone to rust than GAW mesh. It is primarily used for indoor applications such as security screens and guards for machinery.



Welded Wire Mesh

Qijie Company is the leading industrial welded wire mesh supplier and manufacturer offering a full line of welded wire mesh products for a wide range of applications. Welded wire mesh is generally constructed in rolls or flat panels depending on the wire and opening size. Qijie’s welded wire mesh varieties include square and rectangular openings. Custom wire openings are available upon request. The intersections of the wire mesh are typically resistance-welded according to the alloy requirement. Weld set down (thickness of the welded intersection) and weld strength are determined by weld time, weld pressure, and weld temperature.

Galvanised Welded Mesh Specification:



Opening

Wire diameter

Inch

mm

BWG

mm

1" × 1"

25mmx25mm

14# - 11#

2.0mm - 3mm

2" × 1"

50mmx25mm

14# - 8#

2.0mm - 4mm

2" × 2"

50mmx50mm

14# - 8#

2.0mm - 4mm

3" × 2"

75mmx50mm

14# - 6#

2.0mm - 5mm

3" × 3"

75mmx75mm

14# - 6#

2.0mm - 5mm

4" × 2"

100mmx50mm

14# - 4#

2.0mm - 6mm

4" × 4"

100mmx100mm

14# - 4#

2.0mm - 6mm

5" × 5"

125mmx125mm

14# - 4#

2.0mm - 6mm

6" × 6"

150mmx150mm

14# - 4#

2.0mm - 6mm



Opening Mesh


Wire Diameter










Width
0.4-2 m

Length
5-50 m







Material:

*Electric Galvanized before welding *Electro Galvanized after welding
*Hot dipped Galvanized before welding
*Hot dipped Galvanized after welding

*Stainless steel

SUS 304, SUS 316, SUS 316L,etc.

In inch

In metric unit

1/4" x 1/4"

6.4 x 6.4mm

BWG24-22

3/8" x 3/8"

10.6x 10.6mm

BWG22-19

1/2" x 1/2"

12.7 x 12.7mm

BWG23-16

5/8" x 5/8"

16x 16mm

BWG21-18

3/4" x 3/4"

19.1 x 19.1mm

BWG21-16

1" x 1/2"

25.4x 12.7mm

BWG21-16

1-1/2" x 1-1/2"

38 x 38mm

BWG19-14

1" x 2"

25.4 x 50.8mm

BWG16-14

2" x 2"

50.8 x 50.8mm

BWG15-12

2” x 4"

50.8 x 101.6mm

BWG15-12

4” x 4"

101.6 x 101.6mm

BWG15-12

4” x 6"

101.6 x 152.4mm

BWG15-12

6” x 6"

152.4 x 152.4mm

BWG15-12

6” x 8"

152.4 x 203.2mm

BWG14-12





Stainless Steel Welded Wire Mesh

Aperture

Wire Gauge

Width x Length

Inch

mm



m

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

0.914 / 1.0 / 1.22 / 1.5 / 1.8 * 15 / 18 /20 / 25 / 30

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22



1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23



5/8" x 5/8"

16mm x 16mm

18,19,20,21,



3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21



1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21



1'' x 1''

25.4mm x 25.4mm

16,17,18,19,20,21



1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19



1" x 2"

25.4mm x 50.8mm

14,15,16



2" x 2"

50.8mm x 50.8mm

12,13,14,15,16





Galvanised Welded Mesh Feature:

• Easily workable

• Solid construction
• Extremely versatile
• Easy to install
• Lightweight
• Low resistance to wind loads
• Available in many styles and materials



Galvanised Welded Mesh Application:



  • Garden fencing

  • Agricultural

  • Archaeological

  • Building & Construction

  • Concrete Reinforcement

  • Farm & Garden

  • Temporary Fencing

  • Gabions / Stone Retention

  • General Industrial

  • Greenhouse

  • Landscaping

  • Particle Separation

  • Railing & Guardrail Infill Panels

  • Security & Prison

  • Solar Panels

  • Window Guards

  • Zoo Cages & Animal Enclosures

  •



5"×5" Galvanised Welded Mesh Reinforcement ASTM A510 0



5"×5" Galvanised Welded Mesh Reinforcement ASTM A510 1



5"×5" Galvanised Welded Mesh Reinforcement ASTM A510 2



5"×5" Galvanised Welded Mesh Reinforcement ASTM A510 3



5"×5" Galvanised Welded Mesh Reinforcement ASTM A510 4
