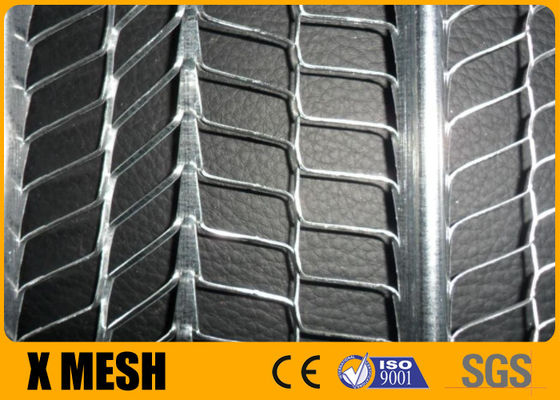

Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking

Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking
Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking

Large Image :  Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Rib Lath 007
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: USD6.15-35.85/PC
Packaging Details: Wrapped with plastic film and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 19850m2/week

Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking

Description
Product Name: Construction Wire Mesh Material: A36 Steel
Sheet Thickness: 0.35mm Mesh Size: 7X11mm
Weight: 1.36kgs/pc Width: 450mm
Length: 2200mm Rib Height: 8mm
Application: For Building Wall Rib Distance: 100mm
High Light:

A36 Steel Expanded Metal Rib Lath

,

Galvanized Expanded Metal Rib Lath

,

Expanded High Rib Lath

Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking construction wire mesh



Construction Wire Mesh Introduction:



Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls,ceilings,partitions and fireproofing of steel beam,and columns.

Rib lath is ideal for proving a high degree key of mechanical bonding with render or plaster.



Product Name

Construction Wire Mesh

Material

A36 Steel

Sheet Thickness

0.35mm

Mesh Size

7X11mm

Weight

1.36kgs/pc

Width

450mm

Length

2200mm

Rib Height

8mm

Application

For Building Wall

Rib Distance

100mm

Construction Wire Mesh Standard Specification:

Model

Thickness(mm)

Weight(kg)

Width(mm)

Length(mm)

Rib Height (mm)

Rib Distance(mm)

021

0.21

1.70

450

2200

14-20

90

023

0.23

1.90

450

2200

14-20

90

030

0.30

2.48

450

2200

14-20

90

035

0.35

2.90

450

2200

14-20

90

040

0.40

3.30

450

2200

14-20

90

045

0.45

3.70

450

2200

14-20

90

050

0.50

4.10

450

2200

14-20

90




Type

Sheet thickness
(mm)

Rib Distance
(mm)

Weight
(kg)

WidthXLength
(mm)

7830

0.30

100

1.79

610X2440

7835

0.35

100

2.09

610X2440

7840

0.40

100

2.38

610X2440

7845

0.45

100

2.68

610X2440

7850

0.50

100

2.98

610X2440

Type

Sheet thickness
(mm)

Rib Distance
(mm)

Weight
(kg)

WidthXLength
(mm)

7430

0.30

100

1.26

610X2440

7435

0.35

100

1.49

610X2440

7440

0.40

100

1.68

610X2440

7445

0.45

100

1.89

610X2440

7450

0.50

100

2.11

610X2440

Type

Sheet thickness
(mm)

Rib Distance
(mm)

Weight
(kg)

WidthXLength
(mm)

9430

0.30

75

1.89

610X2440

9435

0.35

75

2.28

610X2440

9440

0.40

75

2.53

610X2440

9445

0.45

75

2.84

610X2440

9450

0.50

75

3.15

610X2440





Thickness(mm)

mesh(mm)

Rib height(mm)

Rib distance(mm)

kg/m²

Width of panel(mm)

0.30

16X11

8

150

0.85

600

0.35

16X11

8

150

1.00

600

0.40

16X11

8

150

1.14

600



Thickness of panel(mm)



mesh(mm)

Rib height(mm)

Rib distance(mm)



kg/m²

Width of panel(mm)

0.30

7X11

8

100

1.165

600

0.35

7X11

8

100

1.36

600

0.4

7X11

8

100

1.55

600


High Rib Lath

Rib Height

Width

Length

Thickness

Materials

3mm

610

2000mm-2500mm

0.25mm-0.50mm

Galv.

4mm

600mm

2000mm-2500mm

0.30mm-0.50mm

Galv.

10mm

600mm

2000mm-2500mm

0.30mm-0.50mm

Galv.

3/8''

27''

97''

3.4lbs/sq yard

Galv.

3/4''

27.5''

97''

5.4kg/sheet

Galv.

25mm

700mm

2000mm-2500mm

0.50mm

Galv.



Construction Wire Mesh Standard:

  • ASTM A653

  • ASTM A924

  • ASTM C841 (Installation)

  • ASTM C847

  • ICC ESR-1623

  • Fed. Spec. QQ-1-101C

  • ANSI A42.3, ANSI A42.4

  • U.S. HUD 4930.1



Construction Wire Mesh  Feature:

1. Rib Lath Mesh is the perdurable board mesh combined to the concrete, it is strong to the joint gap.
2. The Rib Lath Mesh need not to be backouted after the finishing concrete.
3. The Rib Lath Mesh is easy to be cut, , to be made into any shape, to be transported, especially for the working in high condition.
4. It has the ability of resisting very cold or hot weather, it will not fall or change shape.
5. The coarse surface arises on the joint of mesh boards, this will provide very ideal joint surface for the next moulding.
6. The board mesh is derectly fastened to the reinforcing steel bar, so it can save much time, material and manpower...
7. The last Rib Lath Mesh will stay on the surface of the concrete, it will reinforce the concrete, prevent the concrete from shrinking and avoid the gap.
8. It does good to the protection of the environment, makes the building site keep clean.



Construction Wire Mesh Application:

used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works.

Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 0



Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 1



Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 2



Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 3



Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 4







Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 5



Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 6



Galvanized Expanded Metal High Rib Lath For Concrete Floor Decking 7
