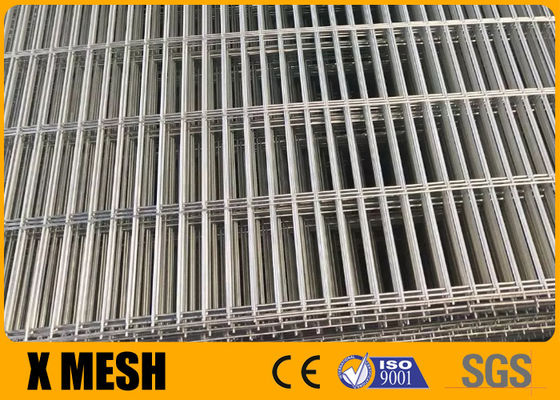

Product Details:
|
| Product Name: | Underground Mesh | Material: | Galvanized Steel Wire |
|---|---|---|---|
| Wire Diameter: | 6mm | Mesh Opening: | 100mm X 50mm |
| Width: | 2400mm | Length: | 6000mm |
| Feature: | Firm & Stable | Application: | For Coal Mine Fields |
| Packing: | Plastic Film & Pallet Packing | Standard: | AS/NZS4534 Standard |
| High Light: | Mine Fields Galvanised Mesh Fence Panels,AS/NZS4534 Galvanised Mesh Fence Panels,AS/NZS4534 galvanized wire mesh panels |
||
Product Name |
Underground Mesh |
Material |
Galvanized Steel Wire |
Wire Diameter |
6mm |
Mesh Opening |
100mm x 50mm |
Width |
2400mm |
Length |
6000mm |
Feature |
Firm & Stable |
Application |
for Coal Mine Fields |
Packing |
Plastic film & Pallet Packing |
Standard |
AS/NZS4534 Standard |
Mesh Panel Common Specification |
|||
Mesh |
Wire Diameter |
||
Expressed in Inches |
Millimeters |
Diameter |
Millimeters |
1" × 1" |
25 mm × 25 mm |
11 G - 14 G |
2 mm - 3 mm |
2" × 1" |
50 mm × 25 mm |
8 G - 14 G |
2 mm - 4 mm |
2" × 2" |
50 mm × 50 mm |
8 G - 14 G |
2 mm - 4 mm |
3" × 2" |
75 mm × 50 mm |
6 G - 14 G |
2 mm - 5 mm |
3" × 3" |
75 mm × 75 mm |
6 G - 14 G |
2 mm - 5 mm |
4" × 2" |
100 mm × 50 mm |
4 G - 14 G |
2 mm - 6 mm |
4" × 4" |
100 mm × 100 mm |
4 G - 14 G |
2 mm - 6 mm |
5" × 5" |
125 mm × 125 mm |
4 G - 14 G |
2 mm - 6 mm |
6" × 6" |
150 mm × 150 mm |
4 G - 14 G |
2 mm - 6 mm |
Max Width :2400mm , Max Length : 6000 mm |
|||
Note: Special specifications can be customized. |
|||
Component |
Strength |
Standard |
Wire |
Tensile 500-750MPa |
AS/NZS4671:2001 |
Weld Shear Strength |
ISO15630-2 |
|
Galvanising |
AS/NZS4534-2006 |
Slab on Grade reinforcement |
Floor and Walls Systems |
Topping Slabs |
ArchiteFloor and Walls Systemsctural precast wall panels |
Tilt-up construction wall systems |
Shear walls |
Retaining walls |
Mechanically Stabilized Earth (M.S.E.) reinforcement |
