Anti Skid Galvanized Welded Steel Grating Crocodile Mouth Crocodile Lips Grip Strut

Large Image : Anti Skid Galvanized Welded Steel Grating Crocodile Mouth Crocodile Lips Grip Strut

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Anti Slip Tread PlatesA06

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	USD8.5-25.5/pc
Packaging Details:	Wrapped with plastic film and pallet packing
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	8500pcs/week

Contact Now

Anti Skid Galvanized Welded Steel Grating Crocodile Mouth Crocodile Lips Grip Strut

Description

Name:	Welded Steel Grating	Diamond Pattern:	3 Diamonds
Width:	13-3/4"	Channel Depth:	4"
Thickness:	11 Ga., 10 Ga., 9Ga.	Standard:	ASTM A213
Application:	For Commercial	Feature:	Easy Install & Long Using Life
Material:	Mild Steel	Packing:	Pallet Or Wooden Case Packing
High Light:	Anti Skid Welded Steel Grating , Welded Steel Grating Galvanized , Galvanized Grip Strut Grating

Anti - Skid Galvanized Welded Steel Grating Crocodile Mouth Crocodile Lips Grip Strut

Welded Steel Grating Introduction:

Grtp Strut Grating Plates are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring.

Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical,

slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or

specifying splice plates as illustrated below.

Name	Welded Steel Grating
Diamond Pattern	3 Diamonds
Width	13-3/4"
Channel Depth	4"
Thickness	11 Ga., 10 Ga., 9Ga.
Standard	ASTM A213
Application	For Commercial
Feature	easy install & long using life
Material	Mild Steel
Packing	Pallet or Wooden Case packing

Welded Steel Grating Standard:

Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard

Welded Steel Grating Specification:

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
5 Diamonds	23-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

6 Diamond / 27-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
6 Diamonds	27-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

8 Diamond / 36" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
8 Diamonds	36"	1-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

Welded Steel Grating Applications:

It's applies to secure channel, platform, stair treads in sewage treatment, waterworks,power plant,prospecting instrument

and other particular environment.

Welded Steel Grating Feature:

1, low cost, zinc plate is cheaper compare to after hot dipped galvanized

2, easy install, but need think about carrying capacity

3, anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.

4, low maintain cost.

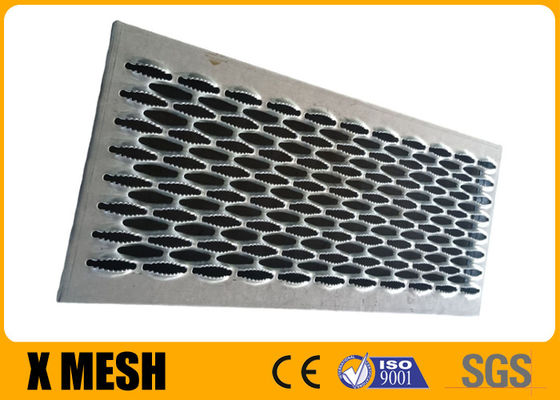

Anti Skid Galvanized Welded Steel Grating Crocodile Mouth Crocodile Lips Grip Strut 1

Anti Skid Galvanized Welded Steel Grating Crocodile Mouth Crocodile Lips Grip Strut 2
