Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter

Certification
China Anping Yuanfengrun Mesh Products Co., Ltd. certification
I'm Online Chat Now

Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter

Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter
Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter

Large Image :  Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-Concertina Wire-004
Payment & Shipping Terms:
Minimum Order Quantity: 500Coil
Price: USD20.50-USD35.5/Coil
Packaging Details: Wrapped with carton and pallet packing
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500tons/month

Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter

Description
Product Name: Razor Barbed Wire Material: Hot Galvanized Steel
Blade Thickness: 0.5mm Wire Dia.: 2.5mm
Blade Length: 22mm Blade Width: 15mm
Blade Spacing: 34mm Color: Silver
Outside Diameter: 600mm Clips: 5/Circle
High Light:

0.5mm Blade Thickness Razor Barbed Wire

,

22mm Blade Length Razor Barbed Wire

,

5 Clips Razor Barbed Wire

Razor Barbed Wire with BTO 22 Cross Type 5 Clips each circle 600mm outside diameter





Razor Barbed Wire Introduction:

Razor barbed wire is a new kind of protective fencing with such advantages as beautiful appearance, economical cost and practicality, and convenient construction. It plays the role of protection in mines, gardens and apartments, frontier, defence, and enclosure of prisons. It is a kind of modern security fencing materials,Barbed wire can be installed as deterrent to the perimeter intruders with piecing and cutting razor blades mounted at the top of the wall . Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

Name

Razor Barbed Wire

Material

Hot Galvanized Steel

Blade Thickness

0.5mm

Wire Dia.

2.5mm

Blade Length

22mm

Blade Width

15mm

Blade Spacing

34mm

Color

Silver

Outside Diameter

600mm

Clips

5/Circle

Razor Barbed Wire Specification:

Main Types of Razor Wire:

Model

Thickness

Wire Dia

Barb Length

Barbed Width


Barb Spacing

BTO-10

0.5 ± 0.05 mm

2.5 ± 0.1mm

10 ± 1mm

13 ± 1mm

26 ± 1mm

BTO-12

0.5 ± 0.05 mm

2.5 ± 0.1mm

12 ± 1mm

15 ± 1mm

26 ± 1mm

BTO-18

0.5 ± 0.05 mm

2.5 ± 0.1mm

18 ± 1mm

15 ± 1mm

34 ± 1mm

BTO-22

0.5 ± 0.05 mm

2.5 ± 0.1mm

22 ± 1mm

15 ± 1mm

34 ± 1mm

BTO-28

0.5 ± 0.05 mm

2.5 ± 0.1mm

28 ± 1mm

15 ± 1mm

53 ± 1mm

BTO-30

0.5 ± 0.05 mm

2.5 ± 0.1mm

30 ± 1mm

21 ± 1mm

54 ± 1mm

CBT-60

0.6 ± 0.05 mm

2.5 ± 0.1mm

60 ± 2mm

32 ± 1mm

102 ± 1mm

CBT-65

0.6 ± 0.05 mm

2.5 ± 0.1mm

65 ± 2mm

21 ± 1mm

102 ± 1mm


We can also design and make the corresponding machines and equipments to manufacture your private customized razor wire types.



Common Specifications of Razor Wire:

Outside Diameter

No. of Loops

The Utmost Effective Length

Type

Notes

450 mm

33

7 - 8 M

CBT - 60.65

Single coil

500 mm

56

12 - 13 M

CBT - 60.65

Single coil

700 mm

56

13 - 14 M

CBT - 60.65

Single coil

960 mm

56

14 - 15 M

CBT - 60.65

Single coil

450 mm

56

8 - 9 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

500 mm

56

9 - 10 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

600 mm

56

10 - 11 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

600 mm

56

8 - 10 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

700 mm

56

10 - 12 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

800 mm

56

11 - 13 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

900 mm

56

12 - 14 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

960 mm

56

13 - 15 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

980 mm

56

14 - 16 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type


We can manufacture more specifications of razor wire products according to the actual needs of customers.



Razor Barbed Wire Feature:

  • 1. Core wire.
    a. Material: galvanized steel wire, galvanized iron wire, stainless steel wire AISI304 AISI316 or AISI430, steel wire is harder than iron wire.
    b. Wire diameter: 2.5mm diameter most commonly used, can also choose other wire gauge.
    c. Surface treatment: hot-dip galvanized or electro-galvanized if galvanized treatment is applied.
    2. Razor blade plate.
    a. Material: galvanized steel plate, or stainless steel plate AISI304 AISI316 or AISI 430.
    b. Thickness: 0.5mm thick is the most common, other thicknesses are also available.
    c. Surface treatment: hot-dip galvanized or electro-galvanized if galvanized treatment is applied.
    3. Clips.
    Clipped or unclipped. Usually 3 clips per coil below 600mm in diameter and 5 clips per coil above 600mm if clipped.



Razor Barbed Wire Application:

  • Razor barbed wire is widely used by many countries in military field, prisons, detention houses, government buildings
    and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class
    fencing wire for not only military and national security applications, but also for cottage and society fence, and other
    private buildings.

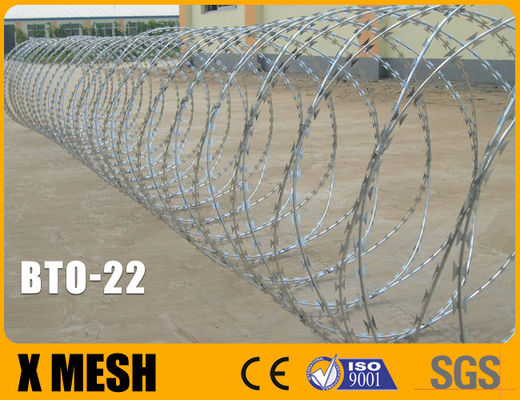

Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter 0

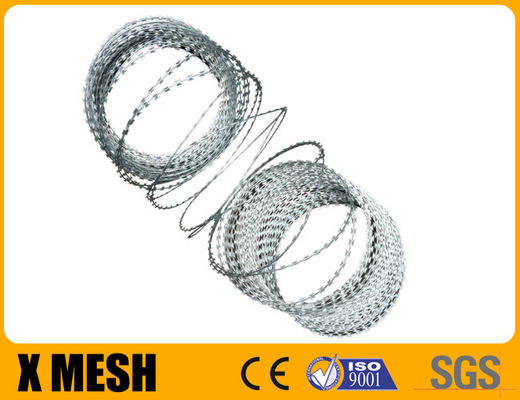

Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter 1



Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter 2



Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter 3

Razor Barbed Wire With BTO 22 Cross Type 5 Clips Each Circle 600mm Outside Diameter 4
