Place of Origin: | Hebei P.R. China. |
Brand Name: | X MESH |
Certification: | ISO9001:2015 |
Model Number: | X MESH-0120 |
Minimum Order Quantity: | 50sets |
---|---|
Price: | USD35.00-85.75/Set |
Packaging Details: | Plastic Film+Metal/Wooden pallet |
Delivery Time: | 5-8days |
Payment Terms: | T/T, Western Union, L/C, MoneyGram |
Supply Ability: | 5000sets/week |
Post Size: | 100mm X 100mm | Wire Diameter: | 4mm |
---|---|---|---|
Color: | Black | Height: | 10' |
Width: | 8' | Feature: | Corrosion Resistance |
Series: | Powder Coated | Standard: | AS/NZS 4534-2006 |
Material: | Galfan Wire | Application: | Highway |

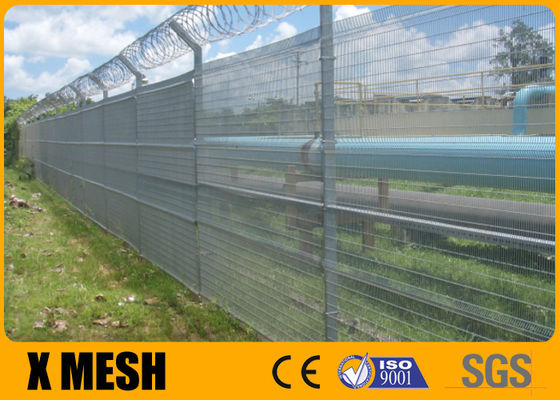

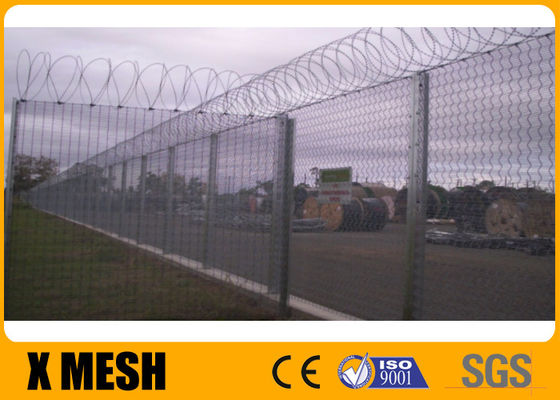

High Light: | Highway 358 Security Mesh Fencing,358 Security Mesh Fencing anti climb,358 anti climb fence panels |
Table-1: 358 Security Mesh Fencing Specifications |
|||||
Product ID |
Fence height (m) |
Panel size (height × width) (mm) |
Fence post (height × size × thickness) (mm) |
Clamp bar (height × width × thick) (mm) |
Inter or corner clamp no (pcs) |
358F01 |
2.0 |
2007 × 2515 |
2700 × 60 × 60 × 2.5 |
2007 × 60 × 5.00 |
7 or 14 |
358F02 |
2.4 |
2400 × 2515 |
3100 × 60 × 60 × 2.5 |
2400 × 60 × 5.00 |
9 or 18 |
358F03 |
3.0 |
2997 × 2515 |
3800 × 80 × 80 × 2.5 |
2997 × 80 × 6.00 |
11 or 22 |
358F04 |
3.3 |
3302 × 2515 |
4200 × 80 × 80 × 2.5 |
3302 × 80 × 6.00 |
12 or 24 |
358F05 |
3.6 |
3607 × 2515 |
4500 × 100 × 100 × 3.0 |
3607 × 100 × 7.00 |
13 or 26 |
358F06 |
4.2 |
4204 × 2515 |
5200 × 100 × 100 × 4.0 |
4204 × 100 × 8.00 |
15 or 30 |
358F07 |
4.5 |
4496 × 2515 |
5500 × 100 × 100 × 5.0 |
4496 × 100 × 8.00 |
16 or 32 |
358F08 |
5.2 |
5207 × 2515 |
6200 × 120 × 120 × 5.0 |
5207 × 100 × 8.00 |
18 or 36 |
