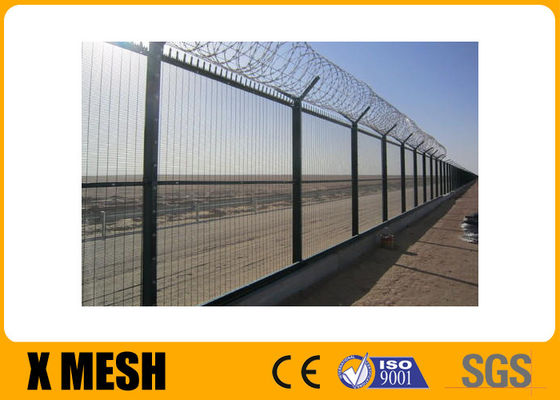

10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing

China Anping yuanfengrun net products Co., Ltd certification
I'm Online Chat Now

10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing

10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing
10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing 10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing

Large Image :  10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing

Product Details:
Place of Origin: Hebei P.R. China.
Brand Name: X MESH
Certification: ISO9001:2015
Model Number: X MESH-0123
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: USD35.00-85.75/Set
Packaging Details: Plastic Film+Metal/Wooden pallet
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sets/week

10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing

Material: Hot Galvanized Wire Series: Powder Coated
Color: Black Mesh Size: 3" X 0.5"
Width: 2400mm Height: 8'
Standard: EN 10223-4:2012 Wire Gauge: 10.5ga
Application: Railway
High Light:

10.5ga Anti Climb Mesh Fence


3"x0.5" prison mesh fencing


10.5ga prison mesh fencing

Railway 10.5ga wire 8ft high EN 10223-4:2012 Standard Anti Climb Mesh Fence



Anti Climb Mesh Fence Description:


358 Welded Anti Climbing Fence – Prison Mesh Fencing

358 anti climb fence, known as "prison mesh", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.


The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.


Anti-Climb Welded Wire Fence

The WireWorks Anti-Climb fence is a unique perimeter security product that maintains a guarded display of visual screening balancing the need to delay and deter an attack. The distinguishing feature of WireWorks Anti-Climb is the anti-scale and anti-cut welded wire mesh. This makes it very difficult to get a foothold on this fence, and the cutting implements required to sever its welded heavy steel wire cannot fit into the minimal spaces of the mesh.

New and Improved Design!

These improvements provide a better product and cost savings to you while expanding your market opportunities! WireWorks Anti-Climb is now available in a 10 foot height with 8 gauge wire mesh and can be made in a groundable configuration - a requirement needed for substation enclosures. Installation times are also up to 40% faster compared to the previous configuration. Now only 1 fastener is needed for rail to mesh and mesh to I-beam connections, and the revised mesh panels eliminate "stack-up" in min-max post spacing!











Anti Climb Mesh Fence Introduction:




  • 358 mesh panel size

    • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").

    • Wire diameter: 4 mm horizontal wire and vertical Wire.

    • Weld strength: range 540–690 N/m2.

    • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

    • Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.

    • Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.

  • Fence posts

    • Material: high grade steel for maximum strength and rigidity.

    • Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm.

    • Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.

    • Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

    • Colors: same as panel.

    • Post cap: metal caps or plastic cap.

    • Metal clips and clamps are hot dip galvanised then powder coating in green or black color.


Anti Climb Mesh Fence Specification:


Wire Panels: 3" x 0.5" x 10.5ga (8' ht.) / 8ga (10' ht.) anti-climb mesh

Impasse II Rails: 2"sq x 11ga

I-Beam Posts: 3" x 2.75" x 12ga / 4" x 2.75" x 12ga

Heights: 8' & 10'









Table-1: anti-climb mesh fencing panels and posts specifications

Fence height (m)

Panel size
(Height × Width)

Fence Post
(Height × Size × Thick)

Clamp Bar
(Height × Width × Thick )

Inter or corner
Clamp No. (PCS)


2007 mm × 2515 mm

2700 × 80 × 80 × 3 mm

2007 × 60 × 5.00 mm

7 or 14


2410 mm × 2515 mm

3100 × 80 × 80 × 3 mm

2400 × 60 × 5.00 mm

9 or 18


3010 mm × 2515 mm

3800 × 100 × 100 × 3.0 mm

2997 × 80 × 6.00 mm

11 or 22


3610 mm × 2515 mm

4500 × 100 × 100 × 3.5 mm

3607 × 100 × 7.00 mm

13 or 26

Note: anti-climb mesh fencing can be custom ordered to measure.

Anti Climb Mesh Fence Feature:



  • Anti-climb: The opening holes are so small that even fingers cannot penetrate in.

  • Anti-cut: Bolt cutter and wire cutter cannot make itself through the narrow holes, therefore the fence won't be destroyed.

  • Strong welded point: The welded joints are fixed firmly, won't split by natural human and nature force.

  • Smooth surface: The panel finish surface is well-proportioned for a decorative effect.

  • Durable: The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life.


Anti Climb Mesh Fence Packaging:


358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.









Anti Climb Mesh Fence Application:


As the leading outdoor perimeter fencing expert in China, ANTI CLIMB FENCE is widely used by reputable Real Estate Developers, Industrial Factories, Engineering Firms, Farms owners, Government Sectors :JKR, DBKL,TNB, MBSA, MBPJ, KNM, TM, SYABAS,IWK etc.


  • Prison perimeter areas.

  • Military sites and government facilities.

  • Electricity distribution sites.

  • Airports, railways, roadways.

  • Seaports.

  • Fencing & intrusion detection projects.

  • Hydel power project.

  • Petroleum and chemical facilities.

  • Wildlife sanctuaries.

  • Warehousing facilities,

  • School.


10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing 0


10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing 1



10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing 2


10.5ga Anti Climb Mesh Fence 3"X0.5" Prison Mesh Fencing 3
