Product Details:
|
| Name: | 358 Fence | Material: | Metal / Stainless Steel / Aluminum / Iron |
|---|---|---|---|
| Wire Diameter: | 3mm/ 4mm/ 5mm/ 6mm | Finishing: | Electric Galvanized/ Hot Dip Galvanized/ Powder Coated/ PVC Coated |
| Feature: | Corrosion Resistance/ Security/ Easily Assembled/ Sustainable/ ECO FRIENDLY | Usage: | Airport / Highway / Sport / Farm / Railway/ Garden |
| Application: | Commercial / Industry / Residential | Fence Height: | 0.6m/ 0.9m/ 1.2m/ 1.5m/ 1.8m/ 2.0m/ 2.2m/ 2.5m/ 3.0m |
| Color: | Green/ Blue/ Black/ White/ Yellow Ect. | Post Size: | 60x 60mm 80x80mm 100x 60mm 100x100mm |
| High Light: | galvanized 358 anti climb security fence,antitheft 358 anti climb security fence,0.9m high anti climb mesh fence |
||

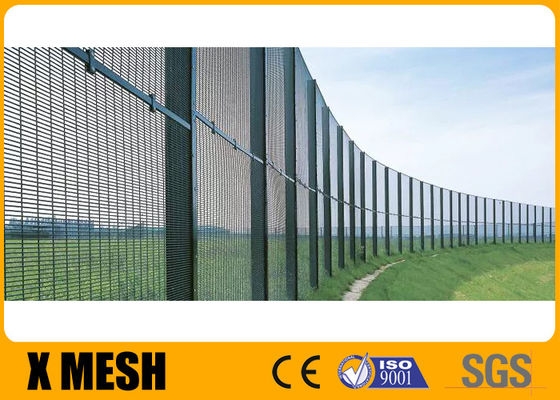

AS2423-2002 Standard anti theft no climb galvanized high security 358 fence
358 fence Introduction:
ANTI CLIMB FENCE is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. It has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Hence, it prevents anyone from climbing over the fence to reach the protected area.
| Name | 358 fence |
| Material | metal / Stainless steel / aluminum / Iron |
| Wire Diameter | 3mm/ 4mm/ 5mm/ 6mm |
| Finishing | Electric Galvanized/ Hot dip galvanized/ Powder coated/ PVC Coated |
| Feature | Corrosion Resistance/ security/ Easily Assembled/ Sustainable/ ECO FRIENDLY |
| Usage | Airport / Highway / Sport / Farm / Railway/ Garden |
| Application | Commercial / Industry / Residential |
| Fence Height | 0.6m/ 0.9m/ 1.2m/ 1.5m/ 1.8m/ 2.0m/ 2.2m/ 2.5m/ 3.0m |
| Color | Green/ Blue/ Black/ White/ Yellow ect. |
| Post Size | 60x 60mm 80x80mm 100x 60mm 100x100mm |
358 fence Application:
Army Camp
Gated Security
Prison
Industrial Factory
Play Ground
Stadium
Housing Estate
Detention Centre
Carpark
Public Hall
Train Station
Harbour
Walkway
Highway
Sport Centre
Airport
School
Lrt Station
Dam Boundary
Reserved Forest
358 fence Specification:
Table-1: 358 Security Mesh Fencing Specifications |
|||||
Product ID |
Fence height (m) |
Panel size (height × width) (mm) |
Fence post (height × size × thickness) (mm) |
Clamp bar (height × width × thick) (mm) |
Inter or corner clamp no (pcs) |
358F01 |
2.0 |
2007 × 2515 |
2700 × 60 × 60 × 2.5 |
2007 × 60 × 5.00 |
7 or 14 |
358F02 |
2.4 |
2400 × 2515 |
3100 × 60 × 60 × 2.5 |
2400 × 60 × 5.00 |
9 or 18 |
358F03 |
3.0 |
2997 × 2515 |
3800 × 80 × 80 × 2.5 |
2997 × 80 × 6.00 |
11 or 22 |
358F04 |
3.3 |
3302 × 2515 |
4200 × 80 × 80 × 2.5 |
3302 × 80 × 6.00 |
12 or 24 |
358F05 |
3.6 |
3607 × 2515 |
4500 × 100 × 100 × 3.0 |
3607 × 100 × 7.00 |
13 or 26 |
358F06 |
4.2 |
4204 × 2515 |
5200 × 100 × 100 × 4.0 |
4204 × 100 × 8.00 |
15 or 30 |
358F07 |
4.5 |
4496 × 2515 |
5500 × 100 × 100 × 5.0 |
4496 × 100 × 8.00 |
16 or 32 |
358F08 |
5.2 |
5207 × 2515 |
6200 × 120 × 120 × 5.0 |
5207 × 100 × 8.00 |
18 or 36 |
